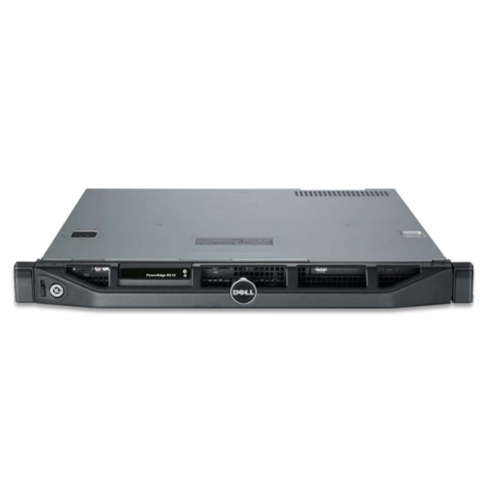

Dell Power Edge R210

Dell Power Edge R210

The Dell PowerEdge R210 is a short-depth, single-socket entry-level server. It’s affordable, easy to manage and is an ideal fit for small businesses and remote offices or for use as a specialized application server for a large business.

Share this product

Dell PowerEdge R210 Server Gen11 – Specifications

Processor
  • Quad-core Intel® Xeon® processor 3400 series
  • Dual-core Intel® Celeron®
  • Dual-core Intel® Pentium®
  • Dual-core Intel® Core™ i3 processor 500 series
Operating System
  • Microsoft® Windows® Small Business Server 2008
  • Microsoft® Windows® Essential Business Server 2008
  • Microsoft® Windows Server® 2008 R2 Foundation2
  • Microsoft® Windows Server® 2008 SP2, x86/x64 (x64 includes Hyper-V™)
  • Microsoft® Windows Server® 2008 R2, x64 (includes Hyper-V™ v2)
  • Microsoft® Windows® HPC Server 2008
  • Novell® SUSE® Linux® Enterprise Server
  • Red Hat® Enterprise Linux®
Chipset

Intel® 3420

Memory

Up to 16GB
1066MHz or 1333MHz DDR3
4 U-DIMMs: 1GB/2GB/4GB

Storage
  • Maximum Internal Storage: 4TB
Drive Bays

Up to two 2.5”/ 3.5” SAS, SATA or SSD drives

  • 3.5” SATA (7.2K rpm): 160GB, 250GB, 500GB, 1TB
  • 3.5” Near-line SAS (7.2 rpm): 1TB, 2TB
  • 3.5” SAS (10K rpm): 600GB
  • 3.5” SAS (15K rpm): 146GB, 300GB, 450GB
  • 2.5” SAS (10K rpm): 146GB, 300GB, 600GB
  • 2.5” SSD: 25GB , 50GB
Communications
  • Broadcom® NetXtreme&trade 5709 Dual Port Gigabit Ethernet NIC, Copper, w/TOE PCIe x4
  • Broadcom® NetXtreme™ 5709 Dual Port Gigabit Ethernet NIC, Copper, TOE/ISCI PCIe x4
  • Intel® PRO/ 1000PT Single Port Adapter, Gigabit Ethernet NIC, PCIe x1
  • Intel® Gigabit ET Dual Port Adapter, Gigabit Ethernet NIC, PCIe x4
  • Intel® Gigabit ET Quad Port Adapter, Gigabit Ethernet NIC, PCIe x4
Slots

I/O Slots: 1 PCIe x16 G2 slot

Raid Controller

Internal:

  • SAS 6/iR Adapter
  • PERC S100
  • PERC S300
  • PERC H200 (6Gb/s)

External:

  • PERC H800 (6Gb/s) with 512MB of battery-backed cache; 512MB, 1GB Non-Volatile battery-backed cache
  • PERC 6/E with 256MB or 512MB of battery-backed cache
  • PERC H800 (6Gb/s) with 512MB Non-volatile cache

External HBAs (non-RAID):

  • 6Gbps SAS HBA
  • SAS 5/E HBA
  • LSI2032 PCIe SCSI HBA

Power

  • Single cabled power supply (250W)
Availability
  • Quad-pack LED diagnostics
  • ECC Memory
  • Add-in RAID
  • TPM/C-TPM
Graphics Card
  • Matrox® G200eW w/ 8MB memory
Chassis
  • 1-U Rack
Management

Remote Management

  • iDRAC6 optional

Systems Management

  • BMC, IPMI 2.0 compliant
  • Dell™ OpenManage™ featuring Dell Management Console
  • Unified Server Configurator
  • Lifecycle Controller enabled via optional iDRAC6 Express, iDRAC6 Enterprise, and vFlash
Rack Support

ReadyRails™ static rails for toolless mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post (Telco) racks
