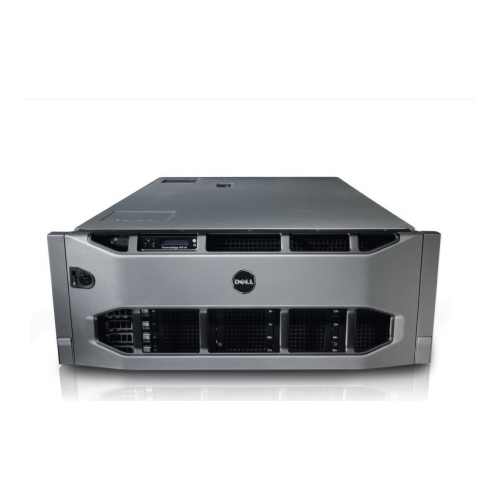

Dell Power Edge R910

Dell Power Edge R910

The Dell™ PowerEdge™ R910 provides performance and reliability in a scalable 4U, four-socket server allowing large workload consolidation or max virtualization machine density.

Share this product

Dell PowerEdge R910 Rack Server – Specifications

Form Factor

4U rack

Processors
  • Eight-core Intel® Xeon® processor 7500 series
  • Ten-core Intel Xeon E7-4800 and E7-8800 product family
Processor Sockets

4

Front Side Bus or HyperTransport

Intel QuickPath Interconnect (QPI)

Cache

Up to 30MB

Chipset

Intel E7510

Memory1

Up to 2TB (64 DIMM slots): 1GB/2GB/4GB/8GB/16GB/32GB DDR3 up to 1333MT/s

I/O Slots

Up to 10 PCIe 2.0 slots + 1 storage slot:

Standard:

  • 7 PCIe 2.0 slots (2 x4, 4 x8, 1 x16)
  • Two x4 slots
  • Four x8 slots
  • One x16 slot

Optional:

  • 10 PCIe Gen2
  • Six x4 slots
  • Four x8 slots
  • One storage x8 slot
RAID Controller

Internal controllers:

  • PERC H200 (6Gb/s)
  • PERC H700 (6Gb/s) with 512MB battery-backed cache;
  • 512MB, 1GB Non-Volatile battery-backed cache

External controllers:

  • PERC H800 (6Gb/s) with 512MB of battery-backed cache;
  • 512MB, 1GB Non-Volatile battery-backed cache

External HBAs (non-RAID):

  • 6Gbps SAS HBA
  • SAS 5/E HBA
  • LSI2032 PCIe SCSI HBA
Drive Bays

Up to sixteen hot-plug 2.5” SATA SSD, SAS, nearline SAS, or SATA drives

Maximum Internal Storage1

Up to 16TB

Hard Drives

Hot-plug hard drive options:

  • 2.5” SATA SSD, SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K)

Solid state storage cards:

  • Fusion-io® 160GB ioDrive PCIe solid state storage card
  • Fusion-io 640GB ioDrive Duo PCIe solid state storage card
  • Fusion-io 320GB ioDrive Mono PCIe solid state storage card
  • Fusion-io 640GB ioDrive Mono PCIe solid state storage card
  • Fusion-io 1.28TB ioDrive Mono PCIe solid state storage card
Communications

Embedded NICs:

  • 1GbE or 10Gb embedded NIC options with iSCSI offload
  • Broadcom® 5709c 4-port (4 x 1GbE) Embedded NIC or
  • Broadcom 57711 4-port (2 x 10GbE + 2 x 1GbE) Embedded NIC + Broadcom 5709c

Optional NICs:

  • Broadcom 57710 Single Port 10GbE NIC, Copper CAT6
  • PCIe-8
  • Intel DA 10GbE NIC, Dual Port, Optical, PCIe-8
  • Intel 10GbE Single Port 10GbE NIC, Copper, PCIe-8
  • Broadcom NetXtreme® II 5709 Gigabit NIC with TOE and
  • iSOE, Quad Port, Copper, PCIe-4, (Low Profile option)
  • Broadcom 5709 Dual Port 1GbE NIC with TOE PCIe-4,
    (Low Profile option)
  • Broadcom 5709 Dual Port 1GbE NIC with TOE iSCSI, PCIe-4,
    (Low Profile option)
  • Broadcom NetXtreme II 57711 10GbE NIC with TOE and iSOE,
  • Dual Port, SFP+, PCIe-8
  • Intel Gigabit ET NIC, Dual Port, Copper, PCIe-4, (Low Profile option)
  • Intel Gigabit ET NIC, Quad Port, Copper, PCIe-4, (Low Profile
    option)
  • Brocade® CNA Dual-port adapter
  • Emulex® CNA iSCSI HBA stand up adapter OCE10102-IX-D
  • Emulex CNA iSCSI HBA stand up adapter OCE10102-FX-D
  • Brocade CNA BR1020
  • QLogic QLE2660 FC16 Single-channel HBA, PCIe 3.0 x4
  • QLogic QLE2662 FC16 Dual-channel HBA, PCIe 3.0 x4
Power Supply

Hot-plug redundant PSUs: 4 x 750W (Energy Smart PSU) (or) 4 x 1100W (High Output PSU)

Availability

Hot-plug hard drives, hot-plug redundant power, hot-plug redundant fans, ECC memory, internal dual SD module, redundant cooling

Video

Matrox® G200 with 8MB memory

Remote Management
  • iDRAC6 Express
  • iDRAC 6 Enterprise with vFlash media optional
Systems Management
  • Dell™ OpenManage™
  • BMC, IPMI 2.0 compliant
  • Unified Server Configurator
  • Lifecycle Controller enabled through optional iDRAC6 Express,
  • iDRAC6 Enterprise, and vFlash media
  • Microsoft® System Center Essential (SCE) 2010 v2
Embedded Hypervisor

Optional Dual-Media Redundant Hypervisor

Rack Support

ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for
threaded hole racks)

Featured Database Applications
  • Microsoft SQL Server® solutions
  • Oracle® database solutions
Operating Systems
  • Microsoft® Windows Server® 2012
  • Microsoft Windows Server 2012 Essentials
  • Microsoft Windows Server 2008 SP2, x86/x64 (x64 includes Hyper-V®)
  • Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V v2)
  • Microsoft Windows® HPC Server 2008
  • Novell® SUSE® Linux Enterprise Server
  • Red Hat® Enterprise Linux®

Virtualization options:

  • VMware® vSphere® ESX™ and ESXi™
  • Citrix® XenServer®
  • Red Hat Enterprise Virtualization®
