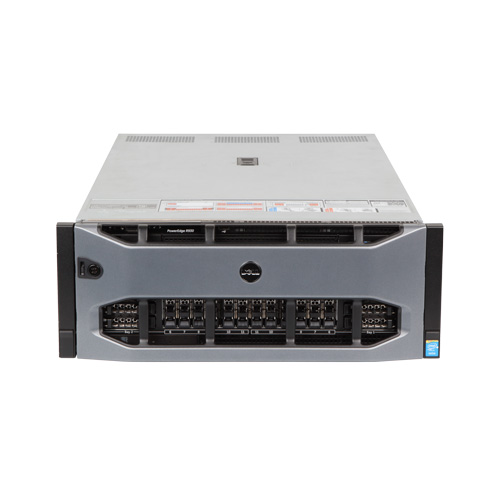

Dell Power Edge R930
The Dell PowerEdge R930 Gen13 server is Dell’s most powerful 4u rack server to date. With four CPUs, up to 12TB of available memory and storage options that include up to 24 hot-swap 2.5-inch drives, and a tiered storage solution, this server is an excellent choice for extreme virtualization and applications that require low latency and in-memory processing.
Dell PowerEdge R930 4-socket Rack Server – Specifications
Form Factor
Rack Server – 4U
Processor
- Intel® Xeon® Processor E7-8800 v4 Product Family
- Intel® Xeon® Processor E7-4800 v4 Product Family
Operating System
- Microsoft Windows Server 2012
- Microsoft Windows Server 2012 R2
- Novell® SUSE® Linux Enterprise Server
- Red Hat® Enterprise Linux
- VMware® ESX®
Chipset
Intel® C602J
Memory
(96 DIMMS): 8GB/16GB/32GB/64GB/128GB RDIMM, LRDIMM up to 2400 MT/s
Storage
- 2.5″ SATA/SAS SSD, SAS HDD (15K, 10K), nearline SAS HDD (7.2K)
- 2.5″ Dell PowerEdge NVMe Express Flash PCIe SSD
Drive Bays
- Up to 24 x 2.5″ hot-plug 12Gb/6Gb SAS HDD or SAS/SATA SSD
- Up to 8 front-accessible Express Flash NVMe PCIe SSD (PCIe 3.0)
Slots
Up to 10 PCIe 3.0 slots
- 1 RAID slot
- 1 NDC slot
Raid Controller
- Internal controllers: PERC H330, PERC H730P
- External HBAs (RAID): PERC H830
- External HBAs (non-RAID): 12Gbps SAS HBA
Communications
Embedded NICs:
- Broadcom® 5720 quad-port 1Gb NDC
- Broadcom® 57800 2x10Gb DA/SFP+ + 2x1Gb BT NDC
- Broadcom® 57800 2x10Gb BT + 2x1Gb BT NDC
- Broadcom® 57840S quad-port 10Gb SFP+ Direct Attach Rack NDC
- Intel® I350 quad-port 1GbE NDC
- Intel® X520 dual-port 10Gb DA/SFP+, + I350 DP 1GbE, NDC
- Intel® X540 10GbE BT dual-port + I350 1Gb BT DP NDC
Power
Hot-plug redundant PSUs: 750W AC, 1100W AC
Availability
Hot-plug hard drives, hot-plug redundant power, hot-plug redundant fans, ECC memory, internal dual SD module
Graphics Card
Matrox® G200 with 8MB memory
Management
- iDRAC8 with Lifecycle Controller
- iDRAC8 Express (default)
- iDRAC8 Enterprise (upgrade option)
- 8GB or 16GB vFlash media (upgrade options)
- IPMI 2.0 compliant
- Dell OpenManage Essentials
- Dell OpenManage Mobile
- Dell OpenManage Power Center
Dell OpenManage Integrations:
- Dell OpenManage Integration Suite for Microsoft System Center
- Dell OpenManage Integration for VMware® vCenter
Dell OpenManage Connections:
- HP Operations Manager, IBM Tivoli® Netcool®, and CA Network and Systems Management
- Dell OpenManage Plug-in for Oracle Database Manager
Dimensions
- H: 6.8″ (172.6mm)
- W: 18.99″ (482.4mm)
- D: 31.59″ (802.3mm) with PSU and bezel
- D: 31.01″ (787.7mm) with PSU and without bezel
