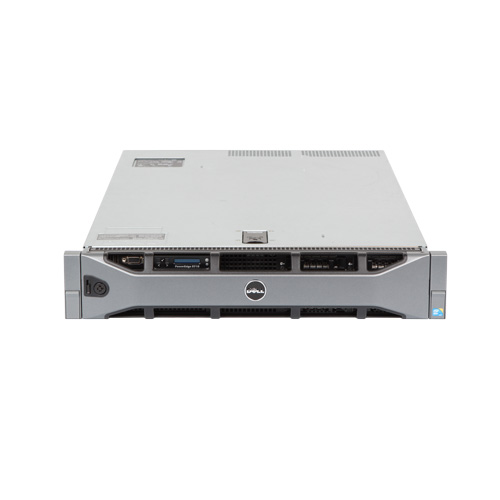

Dell PowerEdge R710 Server – Specifications

Processor – 2 Socket

• Intel® Xeon® processor 5500 and 5600 series
• Six-core Intel® Xeon®
• Quad-core Intel® Xeon®

Operating System

• Microsoft® Windows Server® 2012
• Microsoft® Windows Server® 2012
• Microsoft Windows Server 2012 Essentials
• Microsoft Windows® Small Business Server 2011
• Microsoft Windows Small Business Server 2008
• Microsoft Windows Server 2008 SP2, x86/x64 (x64 includes Hyper-V®)
• Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V v2)
• Microsoft Windows HPC Server 2008 R2
• Novell® SUSE® Linux Enterprise Server
• Red Hat® Enterprise Linux®

Virtualization options:

• Citrix® XenServer®
• Microsoft Hyper-V through Microsoft Windows Server 2008
• VMware® vSphere® ESX™ and ESXi™
• Red Hat Enterprise Virtualization®

Chipset

Intel 5520

Memory

Up to 288GB
Up to 1333MHz DDR3
18 DIMM slots: 1GB/2GB/4GB/8GB/16GB

Embedded Hypervisor (Optional)

• CCitrix® XenServer®
• Microsoft® Windows Server® 2008, with Hyper-V™
• VMware® vSphere™ 4.1 (including VMware ESX® 4.1 or VMware ESXi™ 4.1)

Storage

Hot-plug Hard Drive Options:

• 2.5” SAS SSD, SATA SSD, SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K)
• 3.5” SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K)

Maximum Internal Storage:

• Up to 18TB
• Note: solid state Fusion-io PCIe storage cards are also supported>

Drive Bays

Hot-Swap options available:

• 8 x 2.5” Hard Drive Option
• 6 x 3.5” Hard Drive Option
• Optional flex bay expansion to support half-height TBU
• Up to 6 3.5” drives without optional flex bay
• Up to 8 2.5” SAS or SATA drives with optional flex bay

Peripheral bay options:

• Slim optical drive bay with choice of DVD-ROM, Combo CD-RW/DVD-ROM, or DVD + RW

Slots

4 PCIe G2 slots + 1 storage slot:

• Two x8 slots
• Two x4 slots
• One x4 Storage slot

Raid Controller

Internal:

• PERC H200 (6Gb/s)
• PERC H700 (6Gb/s) with 512MB battery-backed cache; 512MB, 1GB Non-Volatile battery-backed cache
• SAS 6/iR
• PERC 6/i with 256MB battery-backed cache

External:

• PERC H800 (6Gb/s) with 512MB Non-Volatile cache
• PERC H800 (6Gb/s) with 512MB of battery-backed cache
• PERC 6/E with 256MB or 512MB of battery-backed cache

External HBAs (non-RAID):

• 6Gbps SAS HBA
• SAS 5/E HBA
• LSI2032 PCIe SCSI HBA

Communications

Optional add-in NICs:

• Dual Port 10GB Enhanced Intel Ethernet Server Adapter X520-DA2 (FcoE Ready for Future Enablement)
• Intel PRO/1000 PT Dual Port Server Adapter, Gigabit, Copper, PCI-E x4
• Intel PRO/1000 VT Quad Port Server Adapter, Gigabit, Copper, PCI-E x4
• Intel 10GBase-T Copper Single Port NIC, PCI-E x8
• Intel Single Port Server Adapter, 10Gigabit, SR Optical, PCI-E x8
• Broadcom® BMC57710 10Base-T Cooper Single Port NIC, PCI-E x8
• Broadcom® BMC5709C IPV6 Gigabit Copper Dual Port NIC with TOE and iSCSI Offload, PCI-E x4
• Broadcom® BMC5709C IPV6 Gigabit Copper Dual Port NIC with TOE, PCI-E x4
• Broadcom® NetXtreme® II 57711 Dual Port Direct Attach 10Gb Ethernet PCI-Express Network Interface Card with TOE and iSCSI Offload
• Intel® Gigabit ET Dual Port Server Adapter
• Intel® Gigabit ET Quad Port Server Adapter
• Broadcom 10GbE NIC, Broadcom Dual Port 10GbE SFP+
• Brocade® CNA Dual-port adapter
• Emulex® CNA iSCSI HBA stand up adapter OCE10102-IX-D
• Emulex® CNA iSCSI HBA stand up adapter OCE10102-FX-D
• Brocade® CNA (1020) Dual Port Server Adapter

Optional add in HBAs:

• Qlogic® QLE 2462 FC4 Dual Port 4 Gbps Fiber Channel HBA
• Qlogic® QLE 220 FC4 Single Port 4 Gbps Fiber Channel HBA
• Qlogic® QLE 2460 FC4 Single Port 4 Gbps Fiber Channel HBA
• Qlogic® QLE2562 FC8 Dual-channel HBA, PCI-E Gen 2 x4
• Qlogic® QLE2560 FC8 Single-channel HBA, PCI-E Gen 2 x4
• Emulex® LPe-1150 FC4 Single Port 4 Gbps Fiber Channel HBA, PCI-E x4
• Emulex® LPe-11002 FC4 Dual Port 4 Gbps Fiber Channel HBA, PCI-E x4
• Emulex® LPe-12000, FC8 Single Port 4 Gbps Fiber Channel HBA, PCI-E Gen 2 x4
• Emulex® LPe-12002, FC8 Dual Port 4 Gbps Fiber Channel HBA, PCI-E Gen 2 x4
• Brocade® FC4 and 8 GB HBAs
• Emulex® OCE10102-IX-DCNA iSCSI HBA stand-up adapter

Power

Energy Smart:

• Two hot plug high efficient 570w PSU
• High output two hot-plug 870W PSUs

Availability

• Hot-plug hard drives
• Hot-plug redundant power
• Hot-plug redundant cooling
• ECC memory
• Spare Row
• Single Device Data Correction (SDDC)
• iDRAC6
• Tool-less chassis
• Cluster support

Graphics Card

Matrox G200

Chassis

• 2U Rack
• Height: 8.64cm (3.40”)
• Width: 44.31cm (17.44”)
• Depth: 68.07cm (26.80”)
• Weight (maximum config): 26.1kg (57.54lb)

Management

• Dell™ OpenManage™
• Lifecycle Controller
• iDRAC6 Enterprise (Optional)
• vFlash (Optional)
• Microsoft® System Center Essential (SCE) 2010 v2

Rack Support

ReadyRails™ sliding rails for 4-post Racks:

Support tool-less installation in 19” EIA-310-E compliant square or unthreaded round hole 4-post racks including all Dell 42xx & 24xx racks NOTE: Threaded 4-post racks require the static ReadyRails™ kit or 3rd party conversion kits available through Dell Software & Peripherals

Support full extension of the system out of the rack to allow serviceability of key internal components
Support optional cable management arm (CMA)
Rail depth without the CMA: 751 mm
Rail depth with the CMA: 840 mm
Square-hole rack adjustment range: 692-756 mm
Round-hole rack adjustment range: 678-749 mm

ReadyRails™ static rails for 4-post & 2-post Racks:

Support tool-less installation in 19” EIA-310-E compliant square or unthreaded round hole 4-post racks including all Dell 42xx & 24xx racks

Support tooled installation in 19” EIA-310-E compliant threaded hole 4-post and 2-post racks
Rail depth: 608 mm
Square-hole rack adjustment range: 588-828 mm
Round-hole rack adjustment range: 574-821 mm
Threaded-hole rack adjustment range: 592-846 mm
