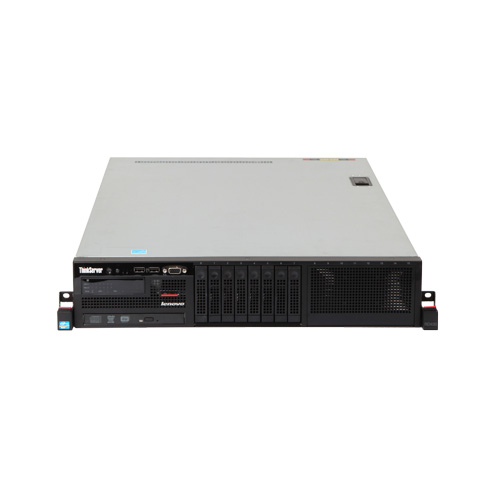

Lenovo Think Server RD430

Lenovo Think Server RD430

The Lenovo ThinkServer RD430 server is a dual-socket platform with a built-in RAID, flexible storage choices, and impressive power efficiency. Powered by Intel’s Xeon E5-2400 processors, this server supports up to 192GB of memory and 24TB of storage.

Category:

Share this product

Lenovo ThinkServer RD430 Rack Server – Specifications

Processor – 2 Sockets
  • Intel Xeon processor E5-2400 series
  • Up to 8-cores per processor
  • Up to 20MB per processor
Operating System
  • Microsoft Windows Server (Including Hyper-V)
  • SUSE Linux Enterprise Server
  • Red Hat Enterprise Linux Server
  • VMware ESXi
Chipset

Intel C606

Memory

Up to 192GB
max DDR3 via 12x16GB DIMMs (RDIMM/LVRDIMM)
Up to 48GB max DDR3 via 12x4GB DIMMs (UDIMM)

RAID Support
  • Up to RAID 0, 1, 5, 6, 10, 50, 60 via ThinkServer RAID 700 adapter
Disk Bays
  • Up to 8 x 3.5-inch SATA/SAS
  • Up to 12 x 3.5-inch SATA/SAS
  • Up to 16 x 2.5-inch SATA/SAS
Network Interface
  • 2 x Integrated Gb Ethernet
  • 1 x Integrated Gb Ethernet (Dedicated to ThinkServer System Manager)
Ports
  • 2x USB 2.0 front
  • 1x analog VGA front
  • 1x ethernet RJ-45 (dedicate/share mgmt) rear
  • 2x ethernet RJ-45 rear
  • 4x USB 2.0 rear
  • 1x serial 9-pin rear
  • 1x analog VGA rear
Expansion Slots

Expansion Slots 1 CPU:

  • Slot 1: half-length, full-height, PCIe 3.0 x16
  • Slot 2: half-length, full-height, PCIe 2.0 x8 (x4 elec)
  • Slot 3: Low Profile, PCIe 3.0 x8 (x4 elec)
  • Slot 3: Low Profile, PCIe 3.0 x8 (x4 elec)

Expansion Slots 2 CPUs:

  • Slot 4: half-length, full-height, PCI Express 3.0 x16 (x8 elec)
  • Slot 5: half-length, full-height, PCI Express 3.0 x8
Chassis
  • 1U Rack
  • H: 3.45 in. (8.763 cm)
  • W: 19 in. (48.26 cm)
  • D: 28.9 in. (73.406 cm)
  • Weight: Starting at 58.42 lbs (26.5 kg)
Power Supply

Redundant hot-swap

  • 2x 550W (80 PLUS Gold) 110V to 240V AC input
Systems Management
  • Onboard Aspeed AST2300 graphics/management processor
  • IPMI 2.0-compliant baseboard management controller (BMC)
  • iKVM: add-on ThinkServer Management Module Premium
