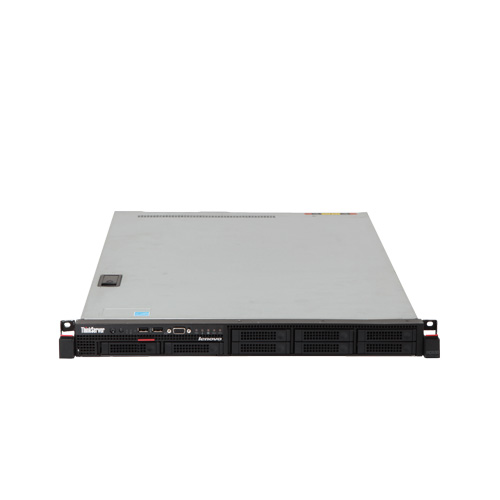

Lenovo Think Server RD530

Processor

Up to two processors, one or two processors standard
Intel® Xeon® E5-2620 processor (6C/12T, 2.0GHz, 15MB, 7.2 GT/s QPI x2), Turbo Boost 2.0 (up to 2.5GHz), 4-channel DDR3 memory controller (up to 1333MHz)Intel Xeon E5-2640 processor (6C/12T, 2.5GHz, 15MB, 7.2 GT/s QPI x2), Turbo Boost 2.0 (up to 3.0GHz), 4-channel DDR3 memory controller (up to 1333MHz)Intel Xeon E5-2650 processor (8C/16T, 2.0GHz, 20MB, 8.0 GT/s QPI x2), Turbo Boost 2.0 (up to 2.8GHz), 4-channel DDR3 memory controller (up to 1600MHz)Intel Xeon E5-2670 processor (8C/16T, 2.6GHz, 20MB, 8.0 GT/s QPI x2), Turbo Boost 2.0 (up to 3.3GHz),4-channel DDR3 memory controller (up to 1600MHz)

Implementation

Two LGA2011 sockets

Memory

RDIMM or LV RDIMM, DDR3, ECC, 4-channel per processor, 240-pin;
RDIMM: twenty sockets (12 sockets for CPU1, 8 sockets for CPU2), 320GB max (20x16GB)
LV RDIMM: sixteen sockets (8 of 12 sockets available for CPU1, 8 sockets for CPU2), 256GB max (16x16GB

Graphics

Onboard Aspeed AST2300 graphics/management processor,one VGA DB-15 on rear.
Maximum resolution: 1920×1200@60Hz

Disk controller

RAID 500: ThinkServer RAID 500 adapter (LSI®SAS9240-8i), PCI Express® bus, SATA 6.0Gb/s, SAS 6.0Gb/s, RAID 0, 1, 10 support.

Upgrade for 500: Additional upgrade key for RAID 500 adapter, add RAID 5 support.

RAID 700: ThinkServer RAID 700 adapter (LSISAS9260-8i), PCI Express bus, SATA 6.0Gb/s, SAS 6.0Gb/s, RAID 0, 1, 5, 6, 10 support.

Battery for 700: Intelligent Battery Backup Unit (iBBU08) for RAID 700

Disk(s)

• 3.5″ SATA: SATA 6.0Gb/s, 7200 rpm
• 3.5″ SAS: SAS 6.0Gb/s, 15000 rpm

Chipset

Intel C602J Chipset

Rack kit

• Includes rack kit

Cable management

• Cable: contains cable management arm

Cooling

• Up to eight fans (7+1 redundant), non-hot swap

Software Management Tools

• ThinkServer EasyStartup
• ThinkServer EasyManage

Energy Management Technology

• Intel Power Node Manager
• Lenovo® SmartGrid Manager
