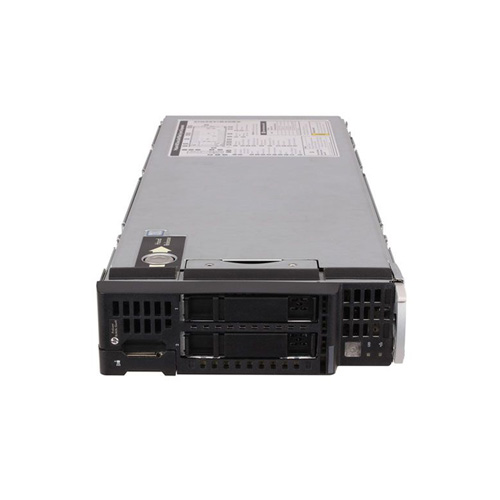

HPe ProLiant BL460c Gen9 Server Blade – Specifications

Processor 2 Socket

Intel® Xeon® processor E5-2600 v3 and E5-2600 v4 product families
Core Options:

• 4, 6, 8, 10, 12, 14, 16, 18, 20, 22

Chipset

Intel C610 Series Chipset

On System Management Processor

HPe iLO (Firmware HPe iLO4 2.0), 4GB NAND with 1GB USB user space configurable via UEFI and accessible via iLO.

Memory Protection

• Advanced ECC
• Memory Mirroring
• Memory Online Spare Mode (Rank Spare Mode)

Memory

Type:

• HPe SmartMemory DDR4 Load Reduced (LRDIMM), or Registered (RDIMM)

DIMM Slots Available:

• 16 DIMM Slots Available

Maximum (LRDIMM):

• 2TB (16 x 128GB) up to 2400MT/s at 1.2V

Maximum (RDIMM):

• 512GB (16 x 32GB) up to 2133MT/s at 1.2V

NOTE: Depending on the memory configuration and processor model, the memory speed may run at 2400MT/s, 2133MT/s, 1866MT/s, or 1600MT/s.

Network Controller

• One (1) 20Gb 2-port FlexFabric FLB, 10Gb 2-port HPe FlexFabric FLB, or 10Gb 2-port Ethernet FLB
• One (1) HPe FlexFabric 10Gb 2-port 536FLB FlexibleLOM
• One (1) HPe FlexFabric 20Gb 2-port 650FLB FlexibleLOM

Standard iLO Network Controller:

• One (1) 10/100 Mbps port for the HPe iLO 4 to Onboard Administrator link.

Expansion Slots

Two (2) I/O expansion mezzanine slots:

• x16 PCIe 3.0 Type A (supports Type A mezzanine cards) (expansion slot 1)
• x16 PCIe 3.0 Type B (supports Type A and Type B mezzanine cards (expansion slot 2)

Mezzanine card options include:

• Dual-port 20Gb FlexFabric, Dual-port 10Gb FlexFabric, 10GbE options, and quad-port 1Gb Ethernet server adapter mezzanine options for additional network ports
• Dual-port 16Gb Fibre Channel HBA for SAN connectivity
• QDR and FDR InfiniBand for low latency and high bandwidth server interconnectivity
• I/O accelerator mezzanine options for high transaction rate local storage

Storage Controller

One (1) HPe Smart Array P244br Controller with 1GB Flash-Backed Write Cache (FBWC) supporting RAID 0 and RAID 1, or HPe H244br Smart HBA.

Internal Storage Devices

Internal MicroSD slot

Maximum Internal Storage

Maximum Internal Storage: 7.68TB

Interfaces

Micro SDHC Slot:

• One (1) internal Micro Secure Digital High Capacity (Micro SDHC) card slot

USB 2.0 Port:

• One (1) internal USB 3.0 connector for USB flash media drive keys

Industry Standard Compliance

• ACPI 2.0
• Microsoft® Logo certifications
• USB 2.0 Support
• IPMI 2.0
• Secure Digital 2.0
• TPM 1.2 Support
• IEEE (specific IEEE standards depending on Ethernet adapter card(s) installed)
• Advanced Encryption Standard (AES)
• Triple Data Encryption Standard (3DES)
• SNMP
• SSL 2.0
• DMTF Systems Management Architecture for Server Hardware Command Line
• Active Directory v1.0
• PCIe 3.0
• ASHRAE A3
• FIPS 140-2 Level-1 certification
• Energy Star

Operating Systems And Virtualization Software Support For Proliant Servers

• Microsoft Windows Server
• Red Hat Enterprise Linux (RHEL)
• SUSE Linux Enterprise Server (SLES)
• Canonical Ubuntu
• Oracle Solaris
• VMware

Enclosures

Hewlett Packard Enterprise offers two different c-Class server blade enclosures to meet your individual needs:

• The HPe BladeSystem c7000 rack enclosure is 10U high and holds up to sixteen (16) ProLiant BL460c Gen9 servers plugged vertically.
• The HPe BladeSystem c3000 rack enclosure is 6U high and holds up to eight (8) HPe ProLiant BL460c Gen9 servers plugged horizontally.

Graphics

• Integrated Matrox G200eh video standard
• HPe iLO Management On System Management Memory

Form Factor

HPe ProLiant BL460c Gen9 is a half-height server blade that plugs into the HPe BladeSystem c3000 and c7000 enclosures.

Embedded Management

• HPe Integrated Lights Out
• UEFI
• HPe RESTful API
• Intelligent Provisioning

Server Utilities

• HPe Smart Update
• HPe Systems Insight Manager (HPe SIM)
• Scripting Tool Kit and Windows PowerShell
• HPe RESTful Interface Tool
• HPe iLO Mobile Application
• HPe Insight Online

Security

• Power-on password
• Administrator’s password
• Keyboard password (QuickLock)
• HPe iLO Management On System Management Chipset
• External USB port enable/disable
• Network server mode
• Serial interface control
• TPM (Trusted Platform Module) 2.0 option
• Advanced Encryption Standard (AES)
• Intel® Advanced Encryption Standard-New Instructions (AES-NI)
• FIPS 140-2 Level-1 certification
