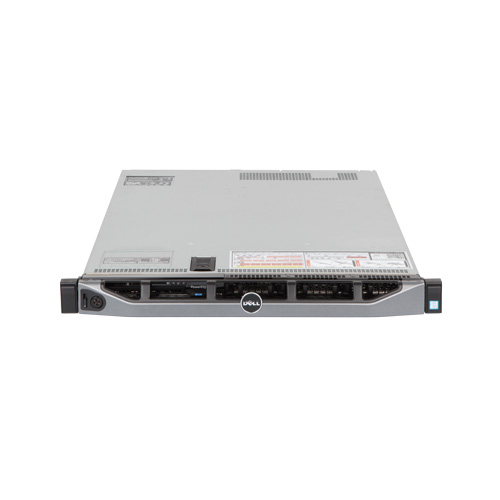

Dell Power Edge R630

Dell Power Edge R630

Capable of a wide range of uses, the Dell PowerEdge R630 server is a 1U 2-socket powerhouse that easily plows through the most rigorous computing tasks. This server is an excellent choice for high-performance computing, data warehousing, e-commerce, and highly virtualized infrastructures.

Share this product

Dell PowerEdge R630 Server – Specifications

Processor

Intel® Xeon® processor E5-2600 v3 product family

  • Internal interconnect: Up to 9.6GT/s
  • Cache: 2.5MB per core; core options: 4, 6, 8, 10, 12, 16

Intel® Xeon® processor E5-2600 v4 product family

  • Internal interconnect: Up to 9.6GT/s
  • Cache: 2.5MB per core; core options: 4, 6, 8, 10, 12, 16, 18, 20

*Both processors must be the same generation and model

Form Factor

1U

Operating System
  • Microsoft® Windows Server® 2008 R2
  • Microsoft Windows Server 2012
  • Microsoft Windows Server 2012 R2
  • Novell® SUSE® Linux Enterprise Server
  • Red Hat® Enterprise Linux
  • VMware® ESX®
Chipset

Intel C610 series chipset

Memory
  • 4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s
  • Memory Type: RDIMM, LRDIMM
  • Memory Module Sockets: 24
  • Minimum RAM: 4GB (one module)
  • Maximum RAM: Up to 1.5TB
Embedded Hypervisor (Optional)
  • Microsoft® Windows Server® 2012, with Hyper-V®
  • VMware® vSphere® ESXi™
  • Citrix® XenServer®
Storage
  • HDD: SAS, SATA, nearline SAS SSD: SAS, SATA, PowerEdge Express Flash NVMe PCIe SSD
  • 24 x 1.8″ SSD – up to 23TB via 0.96TB hot-plug SATA SSD
  • 10 x 2.5″ – up to 18TB via 1.8TB hot-plug SAS HDD
  • 8 x 2.5″ – up to 14TB via 1.8TB hot-plug SAS HDD
Drive Bays

Internal hard drive bay and hot-plug backplane:

  • Up to 24 x 1.8″ SATA SSD
  • Up to 10 x 2.5″ HDD: SAS, SATA, nearline SAS SSD: SAS, SATA, Up to 4 NVMe PCIe
  • Up to 8 x 2.5″ HDD: SAS, SATA, nearline SAS SSD: SAS, SATA
Slots

2 CPUs, 3 slots

  • Slot 1: Half length, half height – PCIe 3.0 x16 (x16 connector)
  • Slot 2: Half length, half height – PCIe 3.0 x8 (x16 connector)
  • Slot 3: Half length, half height – PCIe 3.0 x16 (x16 connector)

2CPUs, 2 slots

  • Slot 1: Half length, half height – PCIe 3.0 x16 (x16 connector)
  • Slot 2: 3/4 length, full height – PCIe 3.0 x16 (x16 connector)

1CPU, 2 slots

  • Slot 1: Half length, half height – PCIe 3.0 x8 (x16 connector)
  • Slot 2: 3/4 length, full height – PCIe 3.0 x16 (x16 connector)
Dedicated Raid Card Slot

RAID Controllers Internal:

  • PERC S130 (SW RAID),
  • PERC H330
  • PERC H730
  • PERC H730P

External:

  • PERC H830

External HBAs (non-RAID):

  • 12Gbps SAS HBA
Network Controller

4 x 1Gb, 2 x 1Gb + 2 x 10Gb, 4 x 10Gb

Communications
  • Broadcom® 5719 quad-port 1Gb NIC
  • Broadcom 5720 dual-port 1Gb NIC
  • Broadcom 57810 dual-port 10Gb DA/SFP+ CNA
  • Broadcom 57810 dual-port 10Gb Base-T network adapter
  • Intel® Ethernet I350 dual-port 1Gb server adapter
  • Intel Ethernet I350 quad-port 1Gb server adapter
  • Intel Ethernet X540 dual-port 10GBASE-T server adapter
  • Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapter
  • Mellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapter
  • Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA
  • Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA
  • Emulex LPe16000B, single-port 16Gb Fibre Channel HBA
  • Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA
  • Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA
  • QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA
  • QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA
  • Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height
  • Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height
Power
  • 1100W AC, 86 mm (Platinum)
  • 1100W DC, 86 mm
  • 750W AC, 86 mm (Platinum)
  • 750W AC, 86 mm (Titanium)
  • 495W AC, 86 mm (Platinum)
Availability
  • ECC memory
  • Hot-plug hard drives
  • Hot-plug redundant cooling
  • Hot-plug redundant power
  • Internal Dual SD Module
  • Single Device Data Correction (SDDC)
  • Spare Rank
  • Support for high availability clustering and virtualization
  • Proactive systems management alerts
  • iDRAC8 with Lifecycle Controller
Chassis

The 24 x 1.8″ drive and 10 x 2.5″ drive configurations have the following dimensions:

  • H: 4.28 cm (1.68 in.)
  • W: 48.23 cm (18.98 in.)
  • D: 75.51 cm (29.72 in.)

The 8 x 2.5″ drive configuration has the following dimensions:

  • H: 4.28 cm (1.68 in.)
  • W: 48.23 cm (18.98 in.)
  • D: 70.05 cm (27.57 in.)
Management

Systems management:

  • IPMI 2.0 compliant;
  • Dell OpenManage Essentials; Dell OpenManage Mobile;
  • Dell OpenManage Power Center

Dell OpenManage Integrations:

  • Dell OpenManage Integration Suite for Microsoft System Center
  • Dell OpenManage Integration for VMware® vCenter

Dell OpenManage Connections:

  • HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management
  • Dell OpenManage for Oracle Database Manager
Remote Management
  • iDRAC8 with Lifecycle Controller
  • iDRAC8 Express (default)
  • iDRAC8 Enterprise (upgrade)
  • 8GB vFlash media (upgrade)16GB vFlash media (upgrade)
  • iDRAC Quick Sync
