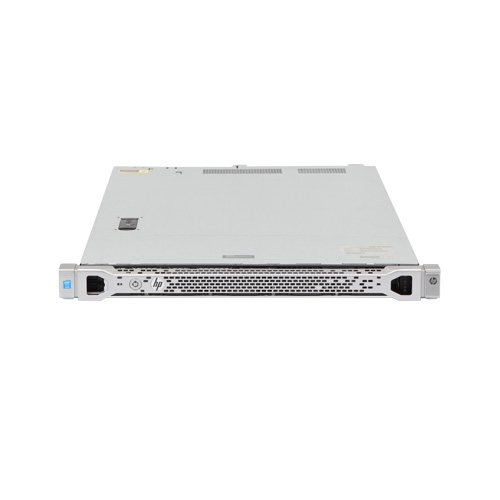

HPe ProLiant DL160 GEN8
The HPe ProLiant DL160 Gen8 is a rack optimized, dual-processor server ideal for high-performance computing, web serving, or other hyperscale environments. New to ProLiant Gen8 servers, HPe’s SmartMemory and Thermal Discover Services increase application uptime while decreasing operational costs.
HPe ProLiant DL160 Gen8 (G8) Server – Specifications
Intel® E5-2600 processor family
Intel® E5-2600 processor family
Operating Systems And Virtualization Software Support For ProLiant Servers
- Microsoft Windows Server
- Red Hat Enterprise Linux (RHEL)
- SUSE Linux Enterprise Server (SLES)
- VMware
- Oracle Solaris
Chipset
Intel® C600 Chipset
On System Management Chipset
HPe iLO (Firmware: HPe iLO 4)
Memory
Type
- PC3-10600R Registered DDR3 (1333MHz)
DIMM Slots Available
- 24 DIMM slots
Standard (Entry Models)
- 4 GB (1 x 4 GB) RDIMM
Standard (Base Models)
- 8 GB (2 x 4 GB) RDIMM
Standard (Performance / Energy Star Models)
- 16 GB (4 x 4 GB) RDIMM
Maximum (RDIMM)
- 384 GB (24 x 16 GB)
Maximum (LRDIMM)
- 768 GB (24 x 32 GB)
Maximum (UDIMM)
- 128 GB (16 x 8 GB)
Network Controller
HPe 361i Integrated Dual Port Gigabit Server Adapter
Expansion Slots
| Expansion Slot # | Technology | Bus Width | Connector Width | Form Factor |
|---|---|---|---|---|
| 1 | PCIe 3.0 | X16 | X16 | Half length, Full height or Full length, Full height |
| 2 | PCIe 3.0 | X8 | X8 | Low Profile |
Storage Controller
Entry Models
- HPe Dynamic Smart Array B120i controller
Base Models
- HPe Dynamic Smart Array B120i controller
Performance Models
- Performance Models
Internal Storage Devices
Diskette Drives
- Via USB only
Optical Drives
- Optional SATA 9.5mm DVD-ROM Optical Drive
- Optional SATA 9.5mm DVD RW Optical Drive
Drive Bays
- Up to 4 Hot plug SAS/SATA 3.5″ drives
- Up to 8 Hot plug SAS/SATA 2.5″ drives
Up to 8 Hot plug SAS/SATA 2.5″ drives
| Hot Plug LFF SATA | 16.0TB | 4 x 4TB |
| Hot Plug LFF SATA SSD | 3.2TB | 4 x 800GB |
| Hot Plug LFF SAS | 16.0TB | 4 x 4TB |
| Hot Plug SFF SATA | 8.0TB | 8 x 1TB |
| Hot Plug SFF SATA SSD | 6.4TB | 8 x 800GB |
| Hot Plug SFF SAS | 9.6TB | 8 x 1.2TB |
| Hot Plug SAS SSD | 6.4TB | 8 x 800GB |
| Non-Hot Plug LFF SATA | 12.0TB | 4 x 3TB |
| Non-Hot Plug LFF SAS | 2.4TB | 4 x 600GB |
Interfaces
Network RJ-45(Ethernet)
- 2 NIC ports, 1 dedicated iLO port
Serial
- 1 (Rear)
Pointing Device (Mouse)
- 0 (via USB only)
Graphics
- 2 VGA ports (1 rear, 1 front)
Keyboard
- 0 (via USB only)
USB 2.0 Ports
- 7 (two front, one internal, four rear)
System Fans
- 5 non-hot plug redundant fans ship standard in 1P models
- 7 non-hot plug redundant fans ship standard in 2P models
Graphics
- Integrated Matrox G200 video standard
- HPe iLO 4 On System Management Memory
Chassis
- 1U Rack
- 8 SFF Models 1.7″ (43.2mm) Height x 17.1″ (434.6mm) Width x 27.5″ (699mm) Length
- 4 LFF Models 1.7″ (43.18mm) Height x 17.11″ (434.6mm) Width x 29.5″ (750mm) Length
On System Management
HPe iLO Management Engine
- HPe iLO
- HPe Agentless Management
- HPe Active Health System
- HPe Intelligent Provisioning
HPe Insight Management Software
HPe Service Pack for ProLiant (SPP)
Security
- Power-on password
- Setup password
- Diskette boot control
- Secure Sockets Layer (SSL)
- Secure Shell (SSH)
