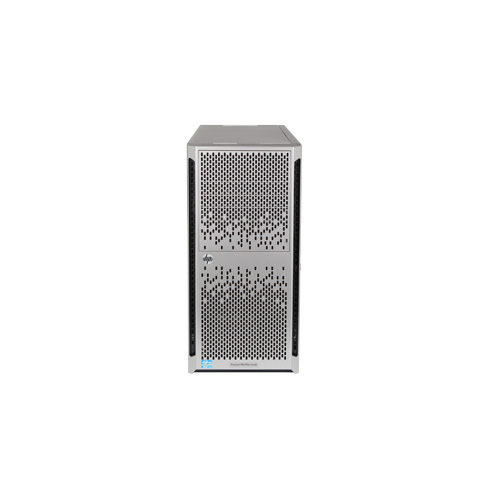

HPe ProLiant ML350 GEN8 – Specifications

Processor

E5-2600 v2 series Processors

Cache Memory

One of the following depending on Model

30MB (1 x 30MB) Level 3
NOTE: For Twelve-core processors.

25MB (1 x 25MB) Level 3
NOTE: For Ten-core processors.

20MB (1 x 20MB) Level 3
NOTE: For Eight-core processors.

15MB (1 x 15MB) Level 3
NOTE: For Six-core processors.

10MB (1 x 10MB) Level 3
NOTE: For Quad-core processors.

5MB (1 x 5MB) Level 3
NOTE: For Dual-Core processors

Chipset

• Intel® C600 Chipset
• Intel® E5-2600 Processor Family
• Intel® E5-2600v2 Processor Family

NOTE: For more information regarding Intel® chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/.

Upgradeability

Upgradeable to two processors
NOTE: Total 4, 8, 12 ,16, 20 or 24 cores

NOTE: Processor upgrade available from Intel® Xeon® Processors E5-2600 to E5-2600 v2. Please contact HP Technology Sales (http://www.hp.com/support), your local HP Re-seller, or reference the following Customer Advisory: ProLiant Servers-Instructions for Upgrading an HP ProLiant Gen8 Server from an Intel Xeon Processor E5-2600 to an Intel Xeon Processor E5-2600 v2, regarding critical details before upgrading. An explanation of requirements and limitations are provided.

NOTE: Customers who use ML350p Gen8 sandy bridge processors need to purchase Heatsink lever upgrade kit 749245-B21 when plan to upgrade to Ivy bridge processor

Up to 24 DIMM slots available for higher memory capacity
Up to 24 SFF Hard Drive Bays; Or 18 LFF Hard Drive Bays
8 PCIe 3.0 and 1 PCIe 2.0 I/O slots for additional communications and storage expansion
Redundant Power Supply and Redundant Fans
Optical Drive Bay (up to 3)

On System Management Chipset

HP iLO (Firmware: HP iLO4)
NOTE: For more information, visit: http://www.hp.com/go/ilo

Memory Protection

• Advanced ECC
• Online Spare
• Lock-step mode

Memory

NOTE: HP memory from previous generation servers are not qualified or warranted with this HP ProLiant Server. HP SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen8. For additional information, please see the HP SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html

NOTE: LRDIMM, RDIMM and UDIMMs are all distinct memory technologies and cannot be mixed within a server. The majority of ProLiant Gen8 servers support RDIMM, UDIMM and LRDIMM.

NOTE: If only one processor is installed, only 12 DIMM slots are available. When populating with two processors 24 DIMM slots are available. For maximum speed on some memory options on 16 DIMM slots may be populated.

NOTE: Depending on the memory configuration and processor model, the memory speed may run at 1866MHz, 1600MHz, 1333MHz, or 1066MHz. Please see Memory Population Table or the Online Memory Configuration Tool at: http://www.hp.com/go/ddr3memory-configurator.

Graphics

Integrated Matrox G200 video standard

• 1280 x 1024 (32 bpp)
• 1920 x 1200 (16 bpp)

HP iLO 4 On System Management Memory

• 16 MB Flash
• 256 MB DDR 3 with ECC (112 MB after ECC and video)

Form Factor

Tower or Rack (5U)
