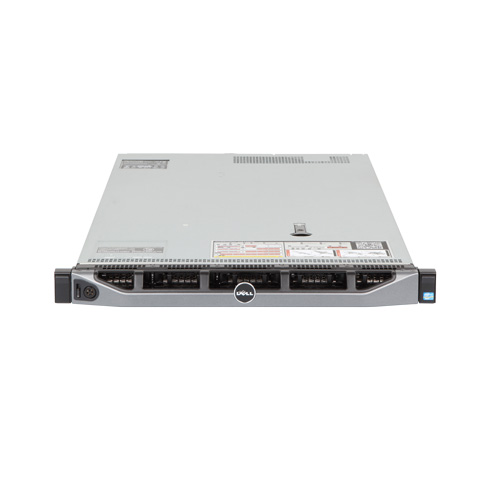

Dell PowerEdge R620 Server – Specifications

Processor – 2 Sockets

Intel® Xeon® processor E5-2600 or E5-2600 v2 product families
2 x Intel QuickPath Interconnect (QPI); 6.4 GT/s; 7.2 GT/s; 8.0 GT/s
Cache:

• 2.5MB per core
• Core options: 4, 6, 8, 10, 12

Operating System

• Microsoft® Windows Server® 2012
• Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V®)
• Novell® SUSE® Linux Enterprise Server
• Red Hat® Enterprise Linux®

Virtualization options:

• Citrix® XenServer®
• VMware® vSphere® ESXi™
• Red Hat Enterprise Virtualization®

Chipset

Intel® C602

Memory

Up to 1.5TB
Up to 1866MT/s DDR3
24 DIMM slots (12 DIMMs per CPU

Storage

Maximum internal storage:

• Up to 10TB

Hot-plug hard drive options:

• 2.5” PCIe SSD, SAS SSD, SATA SSD, SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K), SAS 512n (15K)
• Self-encrypting drives available

Drive Bays

• Up to 10 2.5” hot-plug SAS, SATA, or SSD
• Up to 4 hot-plug 2.5” SAS, SATA, or SSD + two PCIe SSD

Slots

3 PCIe slots:

• Two x16 slots with x16 bandwidth, half-height, half-length
• One x16 slot with x8 bandwidth, half-height, half-length

Note: ten-drive-bay configuration is available only with 3 PCIe slot option
2 PCIe slots:

• One x16 slot with x16 bandwidth, full-height, 3/4 length
• One x16 slot with x16 bandwidth (or x8 with one processor only), half-height, half-length

Raid

Internal controllers:

• PERC S110 (SW RAID)
• PERC H310
• PERC H710
• PERC H710P

External HBAs (RAID):

• PERC H810

External HBAs (non RAID):

• 6Gbps SAS HBA

Communications

• Broadcom® 5720 quad-port 1GbE Base-T (no TOE or iSCSI offload)
• Intel I350 quad-port 1GbE Base-T (no TOE or iSCSI offload)
• Intel X540 dual-port 10GbE Base-T with 2 x 1GbE (FCoE capability enabled on the 10GbE ports)
• Broadcom 57800S dual-port 10GbE Base-T with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports)
• Broadcom 57800S dual-port 10GbE SFP+ with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports)
• Broadcom 57840S quad-port 10GbE SFP+ Rack NDC (NPAR1.0, SRIOV, DCB, iSCSI and FCoE offloads and CEM)

Power

• Titanium efficiency, hot-plug redundant 750W power supply
• Platinum efficiency, hot-plug redundant 495W, 750W or 1100W power supplies
• Auto-ranging power supplies

Availability

• High-efficiency, hot-plug, redundant power supplies
• DC power supplies
• Hot-plug hard drives
• TPM
• Dual internal SD support
• Hot-plug redundant fans
• Optional bezel
• Luggage tag
• ECC memory
• Interactive LCD screen
• Extended thermal support
• ENERGY STAR® compliant
• Extended power range
• Switch Agnostic Partitioning (SWAP)

Chassis

1U Rack

Management

Remote management:

• iDRAC7 with Lifecycle Controller
• iDRAC7 Express (default)
• iDRAC7 Enterprise (upgrade)
• 8GB vFlash media (upgrade)
• 16GB vFlash media (upgrade)

Systems management:

• IPMI 2.0 compliant
• Dell OpenManage™ Essentials
• Dell OpenManage Power Center
• Dell OpenManage Connections:
  • Dell OpenManage Integration Suite for Microsoft® System Center
  • Dell plug-in for VMware® vCenter™
• HP Operations Manager
• IBM Tivoli® Netcool®
• CA Network and Systems Management

Rack Support

ReadyRails II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm
ReadyRails static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post (Telco) racks
