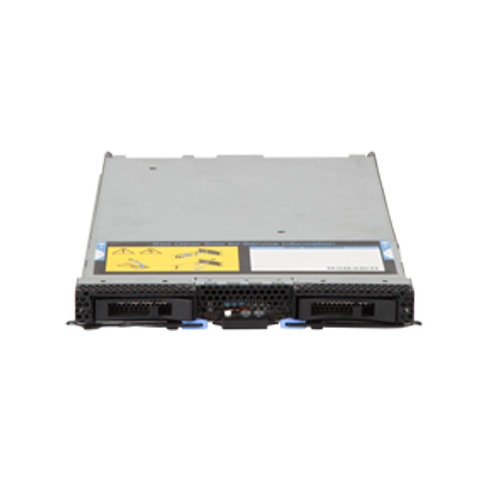

IBM BLADE HS22 – Specifications

Microprocessor

Supports up to two multi-core IntelXeon microprocessors.

Note: Use the Setup utility to determine the type and speed of the microprocessors in the blade server.

Memory

• 12 dual inline memory module (DIMM) connectors
• Type: Very Low Profile (VLP) double-data rate (DDR3) DRAM. Supports 1 GB, 2 GB, 4 GB, 8 GB, and 16 GB DIMMs with up to 192 GB of total memory on the system board

Integrated Functions

• Horizontal-compact-form-factor (CFFh) expansion card interface
• Vertical-combination-I/O (CIOv) expansion card interface
• Local service processor: Integrated Management Module (IMM) with Intelligent Platform Management Interface (IPMI) firmware
• Integrated Matrox G200eV video controller
• LSI 1064E SAS controller
• Broadcom BCM5709S dual-port Gigabit Ethernet controller
• Integrated keyboard/video/mouse (cKVM) controller through IMM
• Light path diagnostics
• RS-485 interface for communication with the management module
• Automatic server restart (ASR)
• USB 2.0 for communication with cKVM and removable media drives (an external USB port is not supported)
• Serial over LAN (SOL)
• Redundant buses for communication with keyboard, mouse, and removable media drives

Predictive Failure Analysis (PFA) Alerts

• Microprocessors
• Memory
• Storage drives

Electrical Input

12 V dc

Environment

• Air temperature:
  • Blade server on: 10°C to 35°C (50°F to 95°F). Altitude: 0 m to 914.4 m (0 ft to 3000 ft)
  • Blade server on: 10°C to 32°C (50°F to 89.6°F). Altitude: 914.4 m to 2133.6 m (3000 ft to 7000 ft)
  • Blade server off: 10°C to 43°C (50°F to 109.4°F). Altitude: 914.4 m to 2133.6 m (3000 ft to 7000 ft)
  • Blade server shipping: -40°C to 60°C (-40°F to 140°F)
• Humidity:
  • Blade server on: 8% to 80%
  • Blade server off: 8% to 80%
  • Blade server storage: 5% to 80%
  • Blade server shipment: 5% to 100%
• Particulate contamination:
  Attention: Airborne particulates and reactive gases acting alone or in combination with other environmental factors such as humidity or temperature might pose a risk to the server. For information about the limits for particulates and gases, see Particulate contamination.

Drives

Supports up to two hot-swap, small form factor (SFF) Serial Attached SCSI (SAS) or Serial ATA (SATA) storage drives

Size (Type 7870 and Type 1936)

• Height: 24.5 cm (9.7 inches) (6U)
• Depth: 44.6 cm (17.6 inches)
• Width: 2.9 cm (1.14 inches)
• Maximum weight: 4.8 kg (10 lb)

Size (Type 1911)

• Height: 24.5 cm (9.7 in)
• Depth: 44.6 cm (17.6 in)
• Width: 14.5 cm (5.71 in)
• Maximum weight: 8.15 kg (40.02 lb)

NEBS Environment

• Air temperature:
  • Blade server on: 5°C to 40°C (41°F to 104°F). Altitude: -60 m to 1800 m (-197 ft to 6000 ft)
  • Blade server on: 5°C to 30°C (41°F to 86°F). Altitude: 1800 m to 4000 m (6000 ft to 13000 ft)
  • Blade server off: -5°C to 55°C (23°F to 131°F). Altitude: -60 m to 1800 m (-197 ft to 6000 ft)
  • Blade server off: -5°C to 45°C (23°F to 113°F). Altitude: 1800 m to 4000 m (6000 ft to 13000 ft)
  • Blade server storage: -40°C to 60°C (-40°F to 140°F)
• Humidity: 8% to 85%
• Particulate contamination:
  Attention: Airborne particulates and reactive gases acting alone or in combination with other environmental factors such as humidity or temperature might pose a risk to the server. For information about the limits for particulates and gases, see Particulate contamination.
