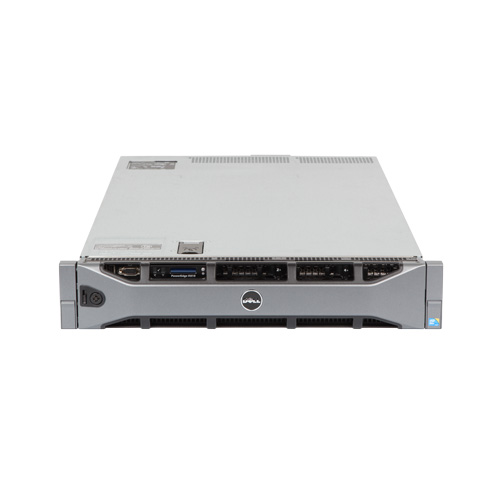

Dell Power Edge R810
The Dell PowerEdge R810 rack server offers substantial performance and rack density in a 2U space, supporting either two or four processors. Adaptable and flexible for a variety of common business applications, this server excels at workload consolidation and for use in highly virtualized environments.
Dell PowerEdge R810 Rack Server – Specifications
Processor
- Up to two, eight-core Intel® Xeon® processors 6500 series
- Up to four, eight-core Intel® Xeon® processors 7500 series
- Up to four, ten-core Intel® Xeon® processors E7-2800, E7-4800 and E7-8800 product family
Operating System
- Microsoft® Windows Server® 2012
- Microsoft Windows Server 2008 SP2, x86/x64 (x64 includes Hyper-V®)
- Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V v2)
- Microsoft Windows® HPC Server 2008 R2
- Novell® SUSE® Linux® Enterprise Server
- Red Hat® Enterprise Linux®
Virtualization Options:
- Citrix® XenServer™
- VMware® vSphere™ ESX and ESXi
Chipset
Intel® E 7510
Memory
- Up to 1TB
- Up to 1066MHz DDR3
- 32 DIMM slots: 1GB/2GB/4GB/8GB/16GB/32GB
Embedded Hypervisor (Optional)
- VMware™ vSphere™ 5.0 (including VMware ESX® 5.0 or VMware ESXi® 5.0)
Storage
Hot-plug Hard Drive Options:
- 2.5” SATA SSD, SAS (10K, 15K), nearline SAS (7.2K), SATA (7.2K)
Solid State Storage Cards:
- Fusion-io® 160IDSS-160GB ioDrive PCIe solid state storage card
- Fusion-io® 640IDSS-640GB ioDrive Duo PCIe solid state storage card
Maximum Internal Storage:
- Up to 6TB
Drive Bays
Hot-Swap options available:
- Up to 6 2.5” SATA SSD, SAS, nearline SAS, or SATA drives
Slots
6 PCIe G2 slots + 1 storage slot:
- Five x8 slots
- One x4 slot
- One Storage x4 slot
Raid Controller
Internal:
- PERC H700 with 512MB battery-backed cache; 512MB, 1GB Non-Volatile battery-backed cache
- PERC H200
External:
- PERC H800 (6Gb/s) with 512MB of battery-backed cache; 512MB, 1GB Non-Volatile battery-backed cache
- PERC 6/E with 256MB or 512MB of battery-backed cache
External HBAs (non-RAID):
- 6Gbps SAS HBA
- SAS 5/E HBA
- LSI2032 PCIe SCSI HBA
Network Controller
- Two Dual-Port Broadcom® 5709c gigabit NICs
- Emulex® OCe10102-FX-D CNA Standup HBA adapter
- Emulex® OCE10102-IX-D CNA iSCSI HBA stand up adapter
Communications
Optional NICs:
- Broadcom®57710 Single Port 10GbE NIC, Copper CAT6 PCIe-8
- Intel® DA 10GbE NIC, Dual Port, Optical, PCIe-8
- Intel® 10GbE Single Port 10GbE NIC, Copper, PCIe-8
- Broadcom® NetXtreme® II 5709 Gigabit NIC w/TOE & iSOE, Quad Port, Copper, PCIe-4, (low profile option)
- Broadcom® 5709 Dual Port 1GbE NIC w/TOE PCIe-4, (low profile option)
- Broadcom® 5709 Dual Port 1GbE NIC w/TOE iSCSI, PCIe-4, (low profile option)
- Broadcom® NetXtreme® II 57711 10GbE NIC w/TOE & iSOE, Dual Port, SFP+, PCIe-8
- Intel® Gigabit ET NIC, Dual Port, Copper, PCIe-4, (low profile option)
- Intel® Gigabit ET NIC, Quad Port, Copper, PCIe-4, (low profile option)
Embedded Network Controllers:
- Emulex® OCE10102-FX-D CNA stand up HBA adapter
- Emulex® OCE10102-IX-D CNA iSCSI HBA stand up adapter
Power
Two redundant 1100W hot-plug power supplies
Availability
- Hot-plug hard drives
- Hot-plug redundant power
- ECC memory
- LCD screen
- Dual Internal SD Modules
Graphics Card
- Matrox® G200eW w/ 8MB
Chassis
- 2U Rack
- Height: 8.64cm (3.40”)
- Width: 44.31cm (17.4”)
- Depth: 72.06cm (28”)
Management
- Dell™ OpenManage™
- BMC, IPMI 2.0 compliant
- iDRAC6 Express, Optional iDRAC6 Enterprise and vFlash
Rack Support
Sliding ReadyRails™ for 4-post racks, static ReadyRails™ for 4-post and 2-post racks, and optional support for cable management arm
Related Products
Dell Power Edge R740XD
Dell Power Edge R740XD
Dell Power Edge R740
Dell Power Edge R740The Dell EMC PowerEdge R740 server is a dual-socket 2U rack system with flexible storage options and built-in security features, ideal for virtually any application. Intel’s new C620 chipset supports Intel’s Xeon Scalable processors with up to 28 cores, plus up to three GPUs for the most demanding applications.
Dell Power Edge R420
Dell Power Edge R420The Dell PowerEdge R420 rack server is a scalable, flexible, 2-socket foundation for data center applications and remote offices. The high density 1U design supports both consolidated and virtualized environments and comes with an array of features to enhance reliability, availability, and serviceability.
Dell Power Edge R520
Dell Power Edge R520The Dell PowerEdge R520 is a flexible computing platform suitable for a number of common uses and data-intensive business applications. This two-socket PowerEdge server can meet the needs of both large and small data center environments and easily scale as your business needs change.
Dell Power Edge R630
Dell Power Edge R630Capable of a wide range of uses, the Dell PowerEdge R630 server is a 1U 2-socket powerhouse that easily plows through the most rigorous computing tasks. This server is an excellent choice for high-performance computing, data warehousing, e-commerce, and highly virtualized infrastructures.

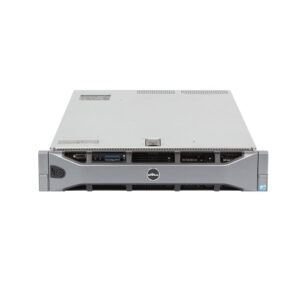

Dell Power Edge R710
