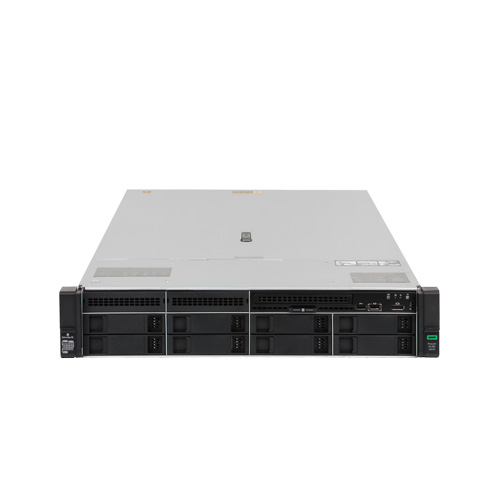

HPe ProLiant DL380 GEN 10

HPe ProLiant DL380 GEN 10

The HPe ProLiant DL380 Gen10 server features two processors and is part of HPe’s new 10th generation line of servers offering greater performance along with hardware-based security features to deliver the world’s most secure industry-standard servers. The DL380 platform is the data center standard for multi-workload compute applications.

Categories: ,

Share this product

HPe ProLiant DL380 Gen10 (G10) Server – Specifications

Processor – 2 Sockets
  • Intel® Xeon® Platinum Processors
  • Intel® Xeon® Gold Processors
  • Intel® Xeon® Silver Processors
  • Intel® Xeon® Bronze Processors
Operating Systems and Virtualization Software Support
  • Windows Server 2012 R2 (Most Recent Version)
  • Windows Server 2016 (Most Recent Version)
  • VMware ESXi 6.0 U3
  • VMware ESXi 6.5 and U1 upon release
  • Red Hat Enterprise Linux (RHEL) 6.9 and 7.3
  • SUSE Linux Enterprise Server (SLES) 11 SP4 and 12 SP2
  • ClearOS
  • CentOS
Chipset

Intel C621 Chipset

On System Management Chipset

HPe iLO 5 ASIC

Memory

Type:

  • Registered (RDIMM), Load Reduced (LRDIMM)

DIMM Slots Available:

  • 12 DIMM slots per processor, 6 channels per processor, 2 DIMMs per channel

Maximum capacity (LRDIMM):

  • 1.5 TB: 24 x 64 GB LRDIMM @ 2600 MHz

Maximum capacity (RDIMM):

  • 768 GB: 24 x 32 GB RDIMM @ 2600 MHz
Expansion Slots
Slots # Technology Bus Width Connector Width Slot Form Factor Notes
1 PCIe 3.0 X8 X8 Full-height, Half-length slot CPU 1
2 PCIe 3.0 X16 X16 Full-height, Full-length slot CPU 1
3 PCIe 3.0 X8 X8 Full-height, Half-length slot CPU 1
1 PCIe 3.0 X8 X8 Full-height, Half-length slot CPU 2
2 PCIe 3.0 X16 X16 Full-height, Full-length slot CPU 2
3 PCIe 3.0 X8 X8 Full-height, Half-length slot CPU 2
Storage Controllers

Software RAID

  • HPe Smart Array S100i SR Gen10 SW RAID

Essential RAID Controller

  • HPe Smart Array E208i-a SR Gen10 Controller
  • HPe Smart Array E208i-p SR Gen10 Controller
  • HPe Smart Array E208e-p SR Gen10 Controller

Performance RAID Controller

  • HPe Smart Array P408i-a SR Gen10 Controller
  • HPe Smart Array P408i-p SR Gen10 Controller
  • HPe Smart Array P408e-p SR Gen10 Controller
  • HPe Smart Array P816i-a SR Gen10 Controller
Internal Storage Devices

Optical Drive

  • Ships standard in Performance Models. Optional: DVD-ROM, DVD-RW
Storage Controllers

Software RAID

  • HPe Smart Array S100i SR Gen10 SW RAID

Hard Drives

  • None ship standard
Maximum Internal Storage
Hot Plug SFF SAS 72.0 TB 24+6 x 2.4 TB (with optional rear SFF drive cage)
Hot Plug SFF SATA 52.0 TB 24+2 x 2 TB (with optional SFF drive cage)
Hot Plug LFF SAS 197.68 TB 12+4+3 x 10 TB + 2 x 3.84 TB (with optional mid –tray and rear LFF drive cage, plus 2 SFF SSD rear)
Hot Plug LFF SATA 197.68 TB 12+4+3 x 10 TB + 2 x 3.84 TB (with optional mid –tray and rear LFF drive cage, plus 2 SFF SSD rear)
Hot Plug SFF SAS SSD 115.2 TB 24+6 x 3.84 TB (with optional rear SFF drive cage)
Hot Plug LFF SATA SSD 44.16 TB 12+4+3 x 1.92 TB + 2 x 3.84 TB (with optional mid –tray and rear LFF drive cage, plus 2 SFF SSD rear)
Hot Plug SFF NVMe PCIe SSD 40 TB NVMe 20 x2 TB NVMe
Power
  • HPe 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
  • HPe 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
  • HPe 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
System Fans
  • Standard – fan types included
Interfaces

Serial:

  • Optional, rear

Display Port:

  • 1 (SFF 1 front, optional via Universal Media Bay, 826708-B21), 8 LFF chassis standard

FlexibleLOM Network Ports:

  • 4 x 1 Gb ports shipping standard with optional FlexibleLOM or stand up card

HPe iLO Remote Management Network Port:

  • 1 Gb Dedicated

Front iLO Service Port:

  • 1 standard (Not available on 12 LFF chassis or when SID is ordered)

Micro SD Slot:

  • 1 Micro SD

USB 3.0:

  • Up to 5 total: 1 front, 2 rear, 2 internal (secure), 2 optional USB 2.0 front via Universal Media Bay, or standard on 8LFF chassis

SID (Systems Insight Display):

  • Optional
Graphics
  • Integrated Video Standard
  • HPe iLO 5 on system management memory
Chassis

2U Rack
Chassis Types:

  • 8 SFF with optional Universal Media Bay, and optional SFF or NVMe options
  • 24 SFF bay with 6SFF rear drive bay options with 30 SFF drive bays total
  • 8 LFF with Universal Media Bay
  • 12 LFF plus optional 4 LFF mid-plane or 3LFF + 2 SFF drives rear with 19 LFF drive bays total
Embedded Management
  • HPe Integrated Lights-Out (HPe iLO)
  • UEFI
  • Intelligent Provisioning
  • iLO RESTful API
Security
  • UEFI Secure Boot and Secure Start support
  • Immutable Silicon Root of Trust
  • FIPS 140-2 validation (iLO 5 certification in progress)
  • Common Criteria certification (iLO 5 certification in progress
    Configurable for PCI DSS compliance
  • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
  • Support for Commercial National Security Algorithms (CNSA)
  • Tamper-free updates – components digitally signed and verified
  • Secure Recovery – recover critical firmware to known good state on detection of compromised firmware
  • Ability to rollback firmware
  • Secure erase of NAND/User data
  • TPM (Trusted Platform Module) 1.2 option
  • TPM (Trusted Platform Module) 2.0 option
  • Bezel Locking Kit option
  • Chassis Intrusion detection option
