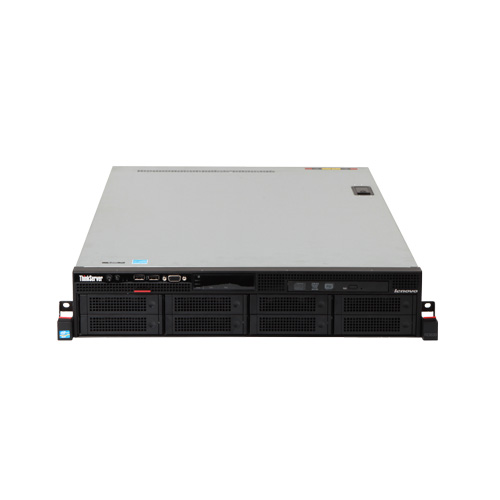

Lenovo Think Server RD630
The Lenovo ThinkServer RD630 server is a 2U, dual-socket platform with flexible storage options and scalable memory capacity to support database applications and virtualized workloads. Intel’s Intelligent Power Technology and Lenovo’s Smart Grid Manager keep operational costs to a minimum.
Lenovo ThinkServer RD630 Rack Server – Specifications
Processor – 2 Sockets
- Intel Xeon processor E5-2600 series
- Up to 8-cores per processor
- Up to 20MB per processor
Operating System
- Microsoft Windows Server (Including Hyper-V)
- SUSE Linux Enterprise Server
- Red Hat Enterprise Linux Server
- VMware ESXi
Chipset
Intel C602J
Memory
- 20 x DIMM slots
- Up to 320GB max DDR3 via 20x16GB RDIMM
- Up to 256GB max DDR3 via 16x16GB LVRDIMM
RAID Support
- Up to RAID 0, 1, 5, 6, 10, 50, 60 via ThinkServer RAID 700 adapter
Disk Bays
- Up to 8 x 3.5-inch SATA/SAS
- Up to 16 x 2.5-inch SATA/SAS
Network Interface
- 2 x Integrated Gb Ethernet
- 1 x Integrated Gb Ethernet (Dedicated to ThinkServer System Manager)
Ports
- 2x USB 2.0 front
- 1x analog VGA front
- 1x ethernet RJ-45 (dedicate/share mgmt) rear
- 2x ethernet RJ-45 rear
- 4x USB 2.0 rear
- 1x serial 9-pin rear
- 1x analog VGA rear
Expansion Slots
Expansion Slots 1 CPU:
- Slot 1: half-length, full-height, PCIe 3.0 x16
- Slot 2: half-length, full-height, PCIe 3.0 x8
- Slot 3: low profile, PCIe 3.0 x8
Expansion Slots 2 CPUs:
- Slot 4: half-length, full-height, PCI Express 3.0 x16 (x8 elec)
- Slot 5: half-length, full-height, PCI Express 3.0 x8
Chassis
- 1U Rack
- H: 3.45 in. (8.763 cm)
- W: 19 in. (48.26 cm)
- D: 28.9 in. (73.406 cm)
- Weight: Starting at 58.42 lbs (26.5 kg)
Power Supply
Redundant hot-swap
- 2x 800W (80 PLUS Gold)
Systems Management
- Onboard Aspeed AST2300 graphics/management processor
- IPMI 2.0-compliant baseboard management controller (BMC)
- iKVM: add-on ThinkServer Management Module Premium
