HPe ProLiant DL360 GEN7

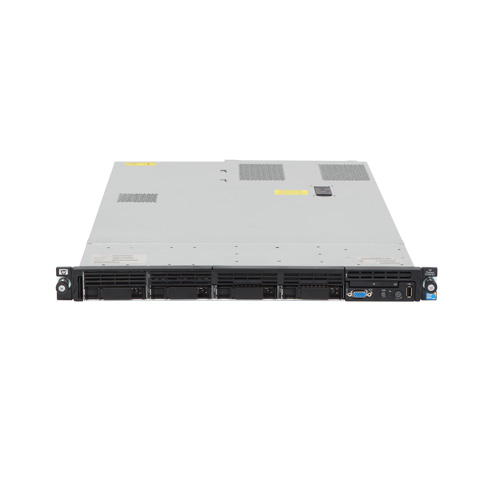

The HPe ProLiant DL360 Gen7 server is a 1U system that can hold up to two processors, eight drive bays, and up to 384GB of memory. Built around Intel’s Xeon 5600 series, this small rack server is capable of handling a variety of tasks from general purpose to high-performance computing.
HPe ProLiant DL360 Gen7 (G7) Server – Specifications
Processor – 2 Sockets
- Intel® Xeon® X5600 processor product family
- Intel® Xeon® E5600 processor product family
- Intel® Xeon® L5600 processor product family
Operating Systems And Virtualization Software Support For ProLiant Servers
- Microsoft Windows Server
- Red Hat Enterprise Linux (RHEL)
- SUSE Linux Enterprise Server (SLES)
- Oracle Solaris
- VMware
- Citrix XenServer
Chipset
Intel® 5520 Chipset
Memory
Type
- DDR3 Registered (RDIMM) or Unbuffered (UDIMM)
DIMM Slots Available
- 18 (3 DIMM slots per Channel/ 3 channels per processor)
Standard (Performance Models)
- 12GB (6 x 2GB) PC3-10600R (DDR3-1333) Registered DIMMs
Standard (Base Models)
- 6GB (3 x 2GB) PC3-10600R (DDR3-1333) Registered DIMMs
Standard (Entry Model)
- 4GB (2 x 2GB) PC3-10600R (DDR3-1333) Registered DIMMs
Standard (Efficiency Model)
- 4GB (2 x 2GB) PC3-10600E (DDR3-1333) Unbuffered DIMMs
Maximum Capacity (RDIMM)
- 384GB (12 slots x 32GB @800MHz)
Maximum Performance Capacity (RDIMM)
- 192GB (6 slots x 32GB @1066MHz)
Maximum Capacity (UDIMM)
- 48GB (12 slots x 4GB @ 1333MHz)
Network Controller
Two HP NC382i Dual Port Multifunction Gigabit Server Adapters (four ports total) with TCP/IP Offload Engine, including support for Accelerated iSCSI
Expansion Slots
| Expansion Slot # | Technology | Bus Width | Connector Width | Form Factor |
|---|---|---|---|---|
| 1 | PCIe | X8 | X8 | Low profile slot |
| 2 | PCIe | X16 | X16 | Full-length, full height slot |
| 3 | PCI-X | 64-bit | Full-length, full height slot |
Storage Controller
Entry Models
- HP Smart Array P410i/Zero Memory Controller (RAID 0/1/1+0)
Base Models
- HP Smart Array P410i/256 MB Controller (RAID 0/1/1+0/5/5+0)
Performance Models
HP Smart Array P410i/1G FBWC Controller (RAID 0/1/1+0/5/5+0)
Efficiency Models
HP Smart Array P410i/Zero Memory Controller (RAID 0/1/1+0)
Internal Storage Devices
Diskette Drive
- None
Optical Drive
- Optional: DVD-ROM, DVD-RW
Hard Drives
- None Standard
Drive Bays
- 4 SFF Bays standard with option for up to 8 SFF drive bays total
Maximum Internal Storage
| Hot Plug SAS | 9.6TB | 8 x 1.2TB SAS |
| Hot Plug SATA | 4.0TB | 8 x 500GB SATA |
| Hot Plug SAS SSD | 6.4TB | 8 x 800GB SAS SSD |
| Hot Plug SATA SSD | 3.2TB | 8 x 400GB SATA SSD |
Interfaces
Serial
- 1
Video
- 1
Network RJ-45
- 4
iLO 3 remote RJ-45 management port
- 1
SD slot
- 1 Internal secure
USB 2.0 Ports
- 4 total: 2 rear, 1 front, 1 internal (secure)
System Fans
- 3 fan modules ship standard in 1 processor models
- 4 fan modules ship standard in 2 processor models
- Fan redundancy standard with all modules
Graphics
Integrated ATI ES1000, 32MB video standard
Chassis
1U Rack form factor
HP Insight Management
- HP Service Pack for ProLiant
- HP Insight Foundation
- HP Integrated Lights-Out 3 (iLO 3)
Security
- Power-on password
- Keyboard password
- QuickLock, Network Server Mode
- Serial interface control
- Administrator’s password
- iLO 3 (Integrated Lights-Out 3) has 12 customizable user accounts and SSL encryption
- iLO 3 can be disabled via a Global Setting
- iLO Advanced supports directory services integration
