HPe ProLiant ML110 GEN7
The HPe ProLiant ML110 G7 server provides an affordable and functional solution to small/medium businesses that are budget-conscious and who have basic or no in-house IT resources. With proven ProLiant reliability and the support for the latest Intel Xeon, Core i3, Pentium processors and RPS and 2 NICs, the ML110 G7 provides the ideal solution to the growing business. A mix of PCI-Express slots, DIMM slots, drive bays, and server options delivers the expandability needed. Integrated iLO3 remote management drives down the operational costs by reducing the number of physical visits. HP Smart Start CD enhances the installation process further. Optional TPM provides for additional level of security.
HPe ProLiant ML110 GEN – Specifications
Processor
Quad-core processors
- Intel Xeon E3-1280 (3.50 GHz/4-core/8MB/95 W, 1333, HT, Turbo 1/2/3/4) Processor2
- Intel Xeon E3-1270 (3.40 GHz/4-core/8MB/80 W, 1333, HT, Turbo 1/2/3/4) Processor2
- Intel Xeon E3-1240 (3.30 GHz/4-core/8MB/80 W, 1333, HT, Turbo 1/2/3/4) Processor
- Intel Xeon E3-1230 (3.20 GHz/4-core/8MB/80 W, 1333, HT, Turbo 1/2/3/4) Processor2
- Intel Xeon E3-1220 (3.10 GHz/4-core/8MB/80 W, 1333, HT, Turbo 1/2/3/4) Processor
Dual-core processors
- Intel Core i3-2130 (3.40 GHz/2-core/3MB/65 W, 1333, HT) Processor
- Intel Core i3-2120 (3.30 GHz/2-core/3MB/65 W, 1333, HT) Processor2
- Intel Core i3-2100 (3.10 GHz/2-core/3MB/65 W, 1333, HT) Processor
- Intel Pentium G860 (3.0 GHz/2-core/3MB/65 W, 1333) Processor
- Intel Pentium G850 (2.90GHz/2-core/3MB/65 W, 1333) Processor2
- Intel Pentium G840 (2.80 GHz/2-core/3MB/65 W, 1333) Processor2
- Intel Pentium G630 (2.70 GHz/2-core/3MB/65 W, 1333) Processor
- Intel Pentium G620 (2.60 GHz/2-core/3MB/65 W, 1333) Processor2
- Intel Celeron G530 (2.40 GHz/2-core/3MB/65 W, 1333) Processor
Cache Memory
- Integrated 1 x 8MB Level3 Intel Smart Cache
- Integrated 1 x 3MB Level3 Intel Smart Cache
Chipset
Intel C200 chipset
Memory protection
ECC
Memory
Type
PC3-10600E unbuffered DDR3 ECC up to 1333 MHz
DIMM slots
Total 4 DIMM slots
Standard
2GB (1 x 2GB) or 4GB (2 x 2GB)
Maximum
16GB
Network Controller
HP NC112i 1-Port ethernet server adapter (x2)
| Expansion Slot # | Technology | Bus Width3 | Connector Width | Form Factor | Notes |
|---|---|---|---|---|---|
| 1 | PCIe G2 | X16 | X16 | Full height, Full length slot | Gen.2, NHP |
| 2 | PCIe G2 | X4 | X8 | Full height, Full length slot | Gen.2, NHP |
| 3 | PCIe G2 | X4 | X8 | Full height, Full length slot | Gen.2, NHP |
| 4 | PCIe G2 | X1 | X1 | Full height, Full length slot | Gen.2, NHP |
Storage controller4
HPe Embedded Smart Array B110i SATA RAID Controller (RAID 0/1/10)
Internal Storage Devices
Optical drive
- DVD ROM
- DVD-RW
Hard drives
- 1 x 250GB NHP SATA 7200 rpm Drive (Entry Model)
- 1 x 250GB NHP SATA 7200 rpm Drive (Base Model)
- Up to 4 HP SATA/SAS 3.5 inch drives supported. None ships standard(Performance Model)
Maximum internal storage
(One of the following depending on Model)
Non-Hot Plug SAS
8.0TB (4 x 2TB) 3.5 in SAS
Non-Hot Plug SATA
16.0TB (4 x 4TB) 3.5 in SATA
Hot Plug SAS
4.0TB (4 x 1TB) 2.5 in SAS
8.0TB (8 x 1TB) 2.5 in SAS
Interfaces
| Parallel 0 | 0 |
| Serial | 1 |
| Pointing Device (Mouse, USB | 1 |
| Graphics | 1 |
| Keyboard (USB) | 1 |
| USB 2.0 Ports5 | 9 total (4 rear, 4 front panel, 1 internal) |
| Network RJ-45 (Ethernet) | 2(10/100/1000 bits/s) |
| Remote Management | iLO3 remote management support |
Industry Standard Compliance
- ACPI V3.0b compliant
- PCI Express Rev 2.0
- PXE support
- WOL support
- IPMI 2.0 compliance
- DCMI 1.0
- Microsoft Logo certifications
- Red Hat Enterprise Linux Logo certifications
- SUSE Linux Enterprise Server Logo certifications
- USB 2.0
Server Power Cords
6 ft country specific, low line NEMA power cord.
Power Supply
- 350 W Non-hot plug, non-redundant power supply
- 460 W Common Slot Gold hot plug power supply
System Fans
- One (1) – Non-redundant system fan ships standard
- One (1) – Non-redundant PCIe fan ships standard
- One (1) – Non-redundant CPU heatsink fan ships standard
Graphics
Integrated Matrox G200eH, 16MB video standard
- 16 bit color: maximum resolution of 1920 x 1200
- 32 bit color: maximum resolution of 1280 x 1024
Form Factor
Micro ATX Tower (4U)6
Security
- Power-on password
- Setup password
- Secure Sockets Layer (SSL)
- Secure Shell (SSH)
- iLO 3 (Integrated Lights-Out 3) has 12 customizable user accounts and SSL encryption
- iLO 3 can be disabled via a global setting
- iLO Advanced supports directory services integration
Related Products
HPe ProLiant DL580 GEN7
HPe ProLiant DL580 GEN7The HPe ProLiant DL580 Gen7 server is a quad-processor platform that offers great expansion potential and a large memory footprint. HPe’s Integrated Lights Out (iLO) management software provides enhanced remote management capabilities and faster server deployment.
HPe ProLiant DL380p GEN8
HPe ProLiant DL380p GEN8The HPe ProLiant DL380p Gen8 server delivers enterprise-class capabilities to the SMB market with a multitude of new management tools such as HPe’s iLO 4.0 server management. Enhanced configuration flexibility and HPe’s customer-inspired design allows for easy upgrades and serviceability.

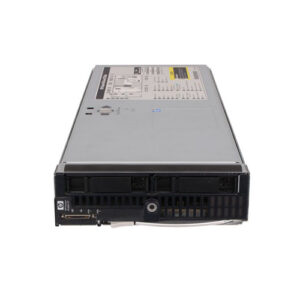

HPe ProLiant BL460 C GEN 9
HPe ProLiant BL460 C GEN 9The HPe ProLiant BL460c Gen9 is a half-height blade server designed for HPe’s BladeSystem c3000 or c7000 enclosure. The BL460c features two-socket performance and is designed to optimize your core IT applications with a flexible, and easily-sized workload solution.
HPe ProLiant DL380 GEN 10
HPe ProLiant DL380 GEN 10The HPe ProLiant DL380 Gen10 server features two processors and is part of HPe’s new 10th generation line of servers offering greater performance along with hardware-based security features to deliver the world’s most secure industry-standard servers. The DL380 platform is the data center standard for multi-workload compute applications.

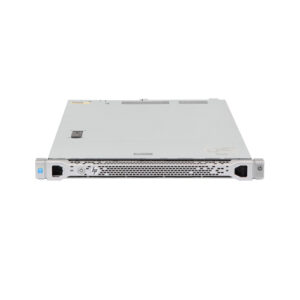

HPe ProLiant DL160 GEN8
