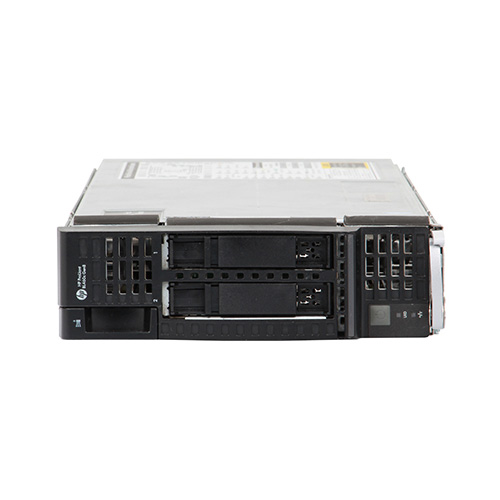

HPe ProLiant BL460c Gen8 Server Blade – Specifications

Processor 2 Socket

Intel® Xeon® processor E5-2600 and E5-2600 v2 product families
Core Options:

• 2, 4, 6, 8, 10, 12

Chipset

Intel C600 Series Chipset

On System Management Processor

HP iLO (Firmware: HP iLO 4)

Memory Protection

• Advanced ECC
• Memory Online Spare Mode (Rank Spare Mode)
• Lockstep Mode

Memory

Type:

• HP SmartMemory DDR3 Load Reduced (LRDIMM), Registered (RDIMM), or Unbuffered ECC (UDIMM)

DIMM Slots Available:

• 16 DIMM Slots Available

Maximum (LRDIMM):

• 512GB (16 x 32GB) up to 1333MHz at 1.35V

Maximum (RDIMM):

• 256GB (16 x 16GB) up to 1866MHz at 1.5V
• 384GB (16 x 24GB) up to 1333MHz at 1.35V

Maximum (UDIMM):

• 128GB (16 x 8GB) up to 1600MHz at 1.5v

NOTE: Depending on the memory configuration and processor model, the memory speed may run at 1866MHz, 1600MHz, 1333MHz, or 1066MHz.

Network Controller

• One (1) HP FlexFabric 10Gb 2-port 534FLB FlexibleLOM, HP FlexFabric 20Gb 2-port 650FLB DlexibleLOM, or HP FlexFabric 10Gb 2-port 554FLB FlexibleLOM
• One (1) HP Flex-10 10Gb 2-port 530FLB FlexibleLOM
• One (1) HP Ethernet 10Gb 2-port 560FLB FlexibleLOM

Standard iLO Network Controller:

• One (1) 10/100 Mbps port for the HP iLO 4 to Onboard Administrator link.

Expansion Slots

Two (2) I/O expansion mezzanine slots:

• x16 PCIe 3.0 Type A (supports Type A mezzanine cards) (expansion slot 1)
• x16 PCIe 3.0 Type B (supports Type A and Type B mezzanine cards (expansion slot 2)

Mezzanine card options include:

• Dual-port 10Gb FlexFabric, 10Gb Flex-10, 10GbE options, and quad-port 1Gb Ethernet server adapter mezzanine options for additional network ports
• Dual-port 8Gb Fibre Channel HBA for SAN connectivity
• QDR and FDR InfiniBand for low latency and high bandwidth server interconnectivity
• I/O accelerator mezzanine options for high transaction rate local storage

Storage Controller

One (1) HP Smart Array P220i Controller with 512MB Flash-Backed Write Cache (FBWC) supporting RAID 0 and RAID 1.

Maximum Internal Storage

Maximum Internal Storage: 4TB

Interfaces

Micro SDHC Slot:

• One (1) internal Micro Secure Digital High Capacity (Micro SDHC) card slot

USB 2.0 Port:

• One (1) internal USB 2.0 connector for USB flash media drive keys

Industry Standard Compliance

• ACPI 2.0
• Microsoft® Logo certifications
• USB 2.0 Support
• IPMI 2.0
• Secure Digital 2.0
• TPM 1.2 Support
• IEEE (specific IEEE standards depending on Ethernet adapter card(s) installed)
• Advanced Encryption Standard (AES)
• Triple Data Encryption Standard (3DES)
• SNMP
• SSL 2.0
• DMTF Systems Management Architecture for Server Hardware Command Line
• Protocol (SMASH CLP)
• Active Directory v1.0
• PCIe 3.0

Operating Systems And Virtualization Software Support For Proliant Servers

• Microsoft Windows Server
• Red Hat Enterprise Linux (RHEL)
• SUSE Linux Enterprise Server (SLES)
• Canonical Ubuntu
• Oracle Solaris
• VMware
• Citrix XenServer

Enclosures

HP offers two different c-Class server blade enclosures to meet your individual needs:

• The HP BladeSystem c7000 rack enclosure is 10U high and holds up to sixteen (16) ProLiant BL460c Gen8 servers plugged vertically
• The HP BladeSystem c3000 rack enclosure is 6U high and holds up to eight (8) HP ProLiant BL460c Gen8 servers plugged horizontally
• Server blades, storage blades, interconnect modules, power supplies, fans, and redundant Onboard Administrator modules are all designed to fit into the c3000 and c7000 enclosures

Graphics

• Integrated Matrox G200 video standard
• HP iLO 4 On System Management Memory

Form Factor

HP ProLiant BL460c Gen8 is a half-height server blade that plugs into the HP BladeSystem c3000 and c7000 enclosures.

On System Management

• HP iLO Management Engine

Hp Insight Management Software

• HP Service Pack for ProLiant (SPP)

Security

• Power-on password
• Administrator’s password
• Keyboard password (QuickLock)
• HP iLO 4 On System Management Chipset
• External USB port enable/disable
• Network server mode
• Serial interface control
• TPM (Trusted Platform Module) 1.2 option
• Advanced Encryption Standard (AES)
• Intel® Advanced Encryption Standard-New Instructions (AES-NI)
