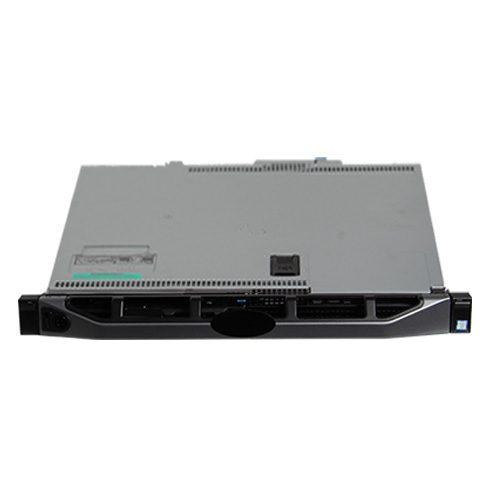

Dell PowerEdge R230 Server – Specifications

Processor – 1 Socket

One processor from any of the following families:

• Intel Xeon Processor E3-1200 v6 family
• Intel Pentium
• Intel Core i3
• Intel Celeron

Operating System

One processor from any of the following families:

• Microsoft Windows Server 2016
• Microsoft Windows Server 2012
• Microsoft Windows Server 2012 R2
• Red Hat Enterprise Linux
• VMware Vsphere ESXi
• SUSE Linux Enterprise Server

Chipset

Intel C236

Memory

Architechture: Up to 2400MT/s DDR4 DIMMs
Memory Type: UDIMMs
Memory Module Sockets: 4
Maximum Capacity: 64GB

Storage

2.5-inch and 3.5-inch SSDs and HDDs

• SAS
• SATA

Internal Storage Bays

• 2 x 3.5″ cabled HDD
• 4 x 3.5″ cabled HDDD
• 4 x 3.5″ hot-swap or 2.5″ hot-swap in hybrid drive carrier

Storage Controller

Raid Controllers:

• PERC S130
• PERC H330
• PERC H730
• PERC H830

Manageability

Systems Management:

• IPMI 2.0 compliant
• Dell OpenManage Essentials
• Dell OpenManage Mobile
• Dell OpenManage Power Center

Remote Management:

• iDRAC8 with Lifecycle Controller
• iDRAC8 Express (default)
• iDRAC8 Enterprise (upgrade)
• 8GB vFlash media (upgrade)
• 16GB vFlash media (upgrade)

Dell OpenManage Connections:

• HP Operations Manager
• IBM Tivoli Netcool and CA
• Network and Systems Management
• Dell OpenManage Plug-in for Oracle Enterprise Manager

Dell OpenManage Integrations:

• Dell OpenManage Integration Suite for Microsoft System Center
• Dell OpenManage Integration for VMware vCenter

Expansion Slots

• 2 x PCIe 3.0 slots: x16, full-height + x8 slot, low profile

I/O Ports

5 total USB:

• 2 x USB 3.0 (rear0
• 2 x USB 2.0 (front)
• 1 x USB 3.0 (internal)

Communcations port:

• 2 x 1GbE LOM

Chassis

1U Rack Server

Dimensions: H: 1.67″ (42.8mm)
W: 17.09″ (434mm)
D: 19.5″ (495mm)
Dimensions above are without ear or bezel.

Power

1 x 250W cabled PSU
