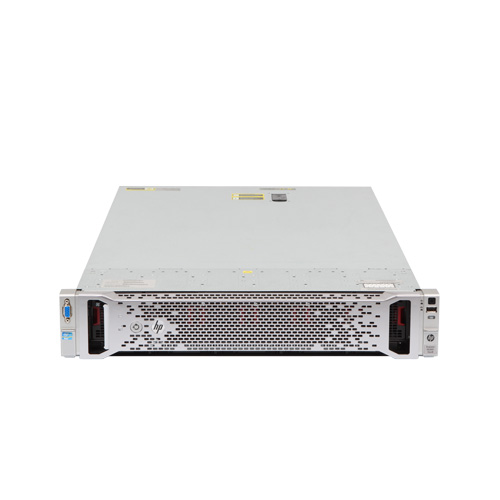

HPe ProLiant DL560 GEN 8
HPe’s ProLiant DL560 Gen8 is a quad-socket, 2U server with massive memory and expansion options ideal for running business critical applications and heavy duty virtualizations. Outfitted with Intel’s high-density Xeon E5-4600 processors, and DDR3 memory this server is highly efficient without compromising on performance.
HPe ProLiant DL560 Gen8 (G8) Server – Specifications
Processor – 2 Sockets
Intel® Xeon® processor E5-4600 and E5-4600v2 product families
Operating Systems And Virtualization Software Support For ProLiant Servers
- Microsoft Windows Server
- Red Hat Enterprise Linux (RHEL)
- SUSE Linux Enterprise Server (SLES)
- Oracle Solaris
- VMware
- Citrix XenServer
Chipset
- Intel® C600 Series Chipset
On System Management Chipset
HPe iLO (Firmware: HPe iLO 4)
Memory
Type
- DDR3 Load Reduced (LRDIMM), Registered (RDIMM)
DIMM Slots Available
- 48 (12 DIMM slots per processor /4 channels per processor/3 DIMMs per channel)
Maximum Capacity
- (RDIMM) 1.5TB (48x 32GB RDIMM @1600MHz)
- (LRDIMM) 1.5TB (48x 32GB LRDIMM @1866MHz)
Network Controller
Entry Models
- HPe Ethernet 1Gb 4-port 331FLR Adapter
Base Models
- HPe Ethernet 1Gb 4-port 331FLR Adapter
High Performance
- HPe Ethernet 1Gb 4-port 331FLR Adapter
- HPe Ethernet 10Gb 2-port 530FLR-SFP+ Adapter
Expansion Slots
Primary Riser (Standard)
| Expansion Slot # | Technology | Bus Width | Connector Width | Bus Number | Form Factor |
|---|---|---|---|---|---|
| 1 | PCIe 3.0 | X16 | X16 | 7 | Full Length, Full Height Slot |
| 2 | PCIe 3.0 | X8 | X8 | 10 | Half Length, Full Height Slot |
| 3 | PCIe 2.0 | X4 | X8 | 13 | Half Length, Full Height Slot |
PCIe Riser (Optional 3-slot)
| Expansion Slot # | Technology | Bus Width | Connector Width | Bus Number | Form Factor |
|---|---|---|---|---|---|
| 4 | PCIe 3.0 | X16 | X16 | 16 | Full Length, Full Height slot |
| 5 | PCIe 3.0 | X8 | X8 | 20 | Half Length, Full Height slot |
| 6 | PCIe 3.0 | X8 | X8 | 23 | Half Length, Full Height slot |
PCIe Riser (Optional 2-slot)
| Expansion Slot # | Technology | Bus Width | Connector Width | Bus Number | Form Factor |
|---|---|---|---|---|---|
| 4 | PCIe 3.0 | X16 | X16 | 16 | Full Length, Full Height slot |
| 5 | PCIe 3.0 | X16 | X16 | 20 | Half Length, Full Height slot |
Storage Controller
Entry Model
- HPe Smart Array P420i/ZM (RAID 0/1/1+0)
Base Model
- HPe Smart Array P420i/1GB with FBWC (RAID 0/1/1+0/5/5+0/6/6+0)
Performance Model
- HPe Smart Array P420i/2GB with FBWC (RAID 0/1/1+0/5/5+0/6/6+0)
Internal Storage Devices
Diskette Drive
- None
Optical Drive
- None ship standard
- Optional: USB DVD-RW available
Hard Drives
- None ship standard
Drive Bays
- Standard: 5SFF drive bays total
Maximum Internal Storage
| Hot Plug SFF SAS | 10.0TB | 5 x 2.0TB |
| Hot Plug SFF SAS SSD | 19.2TB | 5 x 3.84TB |
| Hot Plug SFF SATA | 10.0TB | 5 x 2.0TB |
| Hot Plug SFF SATA SSD | 19.2TB | 5 x 3.84GB |
Interfaces
Serial
- 1
Video
- 2 (1 front, 1 back) not active simultaneously
FlexibleLOM Network Ports
- Some models come standard with 4 x 1GB ports while others come with 2 x 10GB ports (See HPe Networking section below for more details and options).
HPe iLO Remote Management Network Port
- 1 Gb Dedicated
Micro SD slot
- 1 Internal Secure
USB 2.0 Ports
- 7 total: 2 front, 4 back, 1 internal
System Fans
- 6 fans (N+1 redundancy standard)
Graphics
- Integrated Matrox G200 video standard
- HPe iLO 4 On System Management Memory
Chassis
- 2U Rack
- 3.44″ (8.74 cm) Height x 17.54″ (44.55 cm) Width x 29.5″ (74.94 cm) Length
On System Management
HPe iLO Management Engine:
- HP iLO
- HP Agentless Management
- HP Active Health System
- HP Intelligent Provisioning
- HP iLO Mobile App
HP Insight Management
HP Service Pack for ProLiant
Security
- Power-on password
- Serial interface control
- Administrator’s password
- Trusted Platform Module
