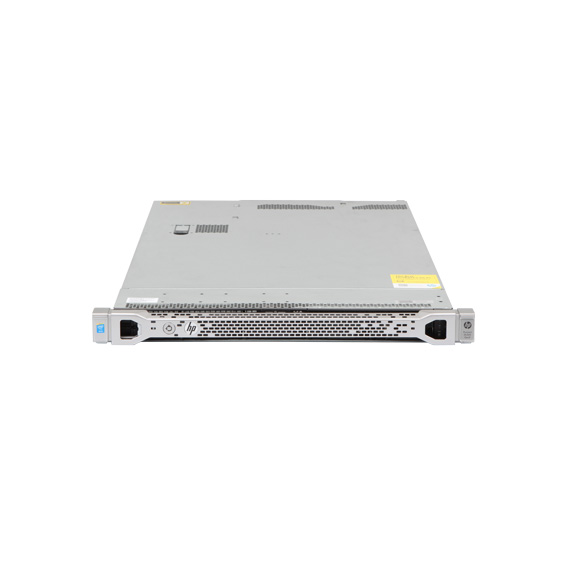

HPe ProLiant DL360p GEN8
HPe’s ProLiant DL360p Gen8 server provides two-socket performance in a compact, space saving 1U rack chassis making it the ideal solution for general purpose applications and dynamic computing workloads. This server offers enhanced storage potential and increased automation capabilities to manage the system throughout its entire lifecycle.
HPe ProLiant DL360p Gen8 (G8) Server – Specifications
Processor – 2 Sockets
Intel® Xeon® processor E5-2600 and E5-2600 v2 product families
Operating Systems And Virtualization Software Support For ProLiant Servers
- Microsoft Windows Server
- Canonical Ubuntu
- Red Hat Enterprise Linux (RHEL)
- SUSE Linux Enterprise Server (SLES)
- Oracle Linux
- VMware
- Citrix XenServer
Chipset
Intel® C600 Series Chipset
On System Management Chipset
HP iLO (Firmware: HP iLO 4)
Memory
Type
- DDR3 Registered (RDIMM), Load Reduced (LRDIMM) or Unbuffered (UDIMM) memory
DIMM Slots Available
- 24 (12 DIMM slots per processor /4 channels per processor/3 DIMMs per channel)
Maximum Capacity (LRDIMM)
- 768GB (24 x 32GB@1066MHz)
Maximum Capacity (RDIMM)
- 384GB (24 x 16GB@1333MHz)
Maximum Capacity (UDIMM)
- 128GB (16 x 8GB@1333MHz)
Maximum Capacity (HDIMM)
- 384GB (24 x 16GB@1333MHz)
384GB (24 x 16GB@1333MHz)
Entry Models
- HP Ethernet 1Gb 4-port 331FLR Adapter
Base Models
- HP Ethernet 1Gb 4-port 331FLR Adapter
Performance Models
- HP Ethernet 10Gb 2-port 530FLR-SFP+ Adapter
- HP Ethernet 1Gb 4-port 331FLR Adapter
- HP Ethernet 10Gb 2-port 533FLR Adapter
Energy Star Models
- HP Ethernet 1Gb 4-port 331FLR Adapter
Expansion Slots
| Expansion Slot # | Technology | Bus Width | Connector Width | Form Factor |
|---|---|---|---|---|
| 1 | PCIe 3.0 | X8 | X8 | Low profile slot |
| 2 | PCIe 3.0 | X16 | X16 | Full-height, half-length slot |
Storage Controller
Entry Models
- HP Smart Array P420i/ZM (RAID 0/1/1+0)
Base Models
- HP Smart Array P420i/1GB with FBWC (RAID 0/1/1+0/5/5+0/6/6+0)
Performance Models
- HP Smart Array P420i/2GB with FBWC (RAID 0/1/1+0/5/5+0/6/6+0)
Energy Star Models
- HP Smart Array P420i/1GB FBWC (RAID 0/1/1+0/5/5+0/6/6+0)
- HP Smart Array P420i/ZM (RAID 0/1/1+0)
Internal Storage Devices
Diskette Drive
- None
Optical Drive
- Optional: DVD-ROM, DVD-RW
Hard Drives
- None ship standard
Hard Drive Bays
- 8 SFF drive bays total with Optical drive bay
- Optional: 4 LFF bays with Optical drive bay
- Optional: 10 SFF bays without optical
Maximum Internal Storage
| Hot Plug SFF SAS | 20.0TB | 10 x 2TB |
| Hot Plug SFF SATA | 20.0TB | 10 x 2TB |
| Hot Plug LFF SAS | 32.0TB | 4 x 8TB (with optional LFF drive cage) |
| Hot Plug LFF SATA | 32.0TB | 4 x 8TB (with optional LFF drive cage) |
| Hot Plug SFF SAS SSD | 19.2TB | 10 x 1.92TB |
| Hot Plug SFF SATA SSD | 16.0TB | 10 x 1.6TB |
| Hot Plug LFF SAS SSD | 6.4TB | 4 x 1.6TB (with optional LFF drive cage) |
| Hot Plug LFF SATA SSD | 6.4TB | 4 x 1.6TB (with optional LFF drive cage) |
Interfaces
Serial
- 1
Video
- 2 (1 front, 1 back) not active simultaneously
FlexibleLOM Network Ports
- Some models come standard with 4 x 1GB ports while others come with 2 x 10GB ports
HP iLO Remote Management Network Port
- 1 Gb Dedicated
SD slot
- 1 Internal Secure
USB 2.0 Ports
- 7 total: 4 rear, 2 front, 1 internal (secure)
System Fans
- 6 fan modules ship standard in 1 processor models
- 8 fan modules ship standard in 2 processor models
Graphics
- Integrated Matrox G200 video standard
- HP iLO 4 On System Management Memory
Chassis
1U Rack form factor
8 SFF and 10 SFF Drive Bay Versions: 1.7″ (4.32cm) Height x 17.11″ (43.47cm) Width x 27.5″ (69.85cm) Length
4 LFF Drive Bay Version: 1.7″ (4.32cm) Height x 17.11″ (43.47cm) Width x 29.5″ (74.67cm) Length
On System Management
HP iLO Management Engine:
- HP iLO
- HP Agentless Management
- HP Active Health System
- HP Intelligent Provisioning
- HP iLO Mobile App
HP Insight Management
HP Service Pack for ProLiant
Security
- Power-on password
- Serial interface control
- Administrator’s password
