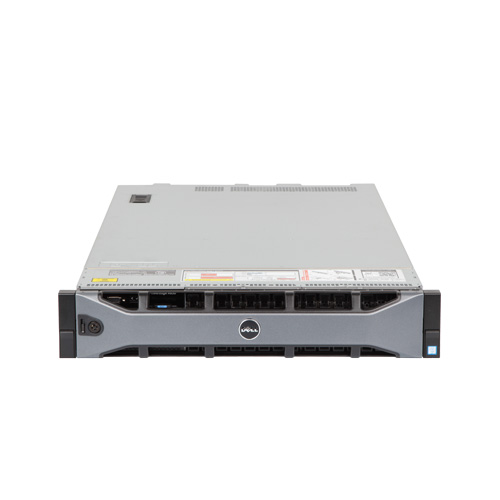

Dell Power Edge R830
The Dell PowerEdge R830 is a 2U rack server that supports four processors and loads of memory. This is a foundational server ideally suited for dense virtualization, database, and in-memory applications.
Dell PowerEdge R830 Gen13 Rack Server – Specifications
Processor – 4 Socket
- Intel® Xeon® processor E5-4600 v4 product family
Operating System
- Microsoft Windows Server® 2012 R2
- Microsoft Windows Server 2012
- Novell® SUSE® Linux Enterprise Server
- Red Hat® Enterprise Linux®
- VMware vSphere® ESXi®
Optional embedded hypervisors:
- Microsoft Windows Server with Hyper-V®
- Citrix® XenServer®
- VMware vSphere ESXi
Chipset
Intel C612
Memory
Up to 3TB
Up 2400MT/s DDR4, RDIMM, LRDIMM
48 DIMM slots: 8GB/16GB/32GB/64GB
Storage
Up to 16 x 2.5” SATA/SAS SSD, SAS HDD (15K, 10K), nearline SAS HDD (7.2K)
Drive Bays
Up to 16 x 2.5”
Slots
7 PCIe slots:
- 2 x16 half-length, full-height
- 1 x8 half-length, full-height
- 3 x8 half-length, half-height
- 1 x8 half-length, full-height for the RAID controller
Raid Controller
Internal controllers:
- PERC H330
- PERC H730
- PERC H730P
External HBAs (RAID):
- PERC H830
External HBAs (non-RAID):
- 12Gbps SAS HBA
Availability
- Hot-plug hard drives
- Hot-plug redundant power
- Hot-plug redundant fans
- ECC memory
- Internal dual SD module
Communications
- Broadcom® 5720 quad-port 1GbE Base-T (no TOE or iSCSI offload)
- Broadcom 57800S dual-port 10GbE Base-T with 2 1GbE (TOE and iSCSI offload available on 10GbE ports)
- Broadcom 57800S dual-port 10GbE SFP+ with 2 1GbE (TOE and iSCSI offload available on 10GbE ports)
- Intel I350 quad-port 1GbE Base-T (no TOE or iSCSI offload)
- Intel X540 dual-port 10GbE Base-T with 2 1GbE (FCoE capability enabled on the 10GbE ports)
Power
- Platinum 750W AC, auto-ranging
- Platinum 1600W AC, auto-ranging
Chassis
2U Rack
Height: 8.68 cm (3.42 in)
Width: 43.4 cm (17.08 in)
Depth: 74.06 cm (29.16 in)
Management
Systems management:
- IPMI 2.0 compliant
- Dell OpenManage Essentials
- Dell OpenManage Mobile
- Dell OpenManage Power Center
Remote management:
- iDRAC8 with Lifecycle Controller
- iDRAC8 Express (default)
- iDRAC8 Enterprise (upgrade)
- 8GB vFlash media (upgrade)
- 16GB vFlash media (upgrade)
- iDRAC Quick Sync
Dell OpenManage Integrations:
- Dell OpenManage Integration Suite for Microsoft® System Center
- Dell OpenManage Integration for VMware® vCenter™
Dell OpenManage Connections:
- HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management
- Dell OpenManage Plug-in for Oracle® Database Manager
Rack Support
ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm.
