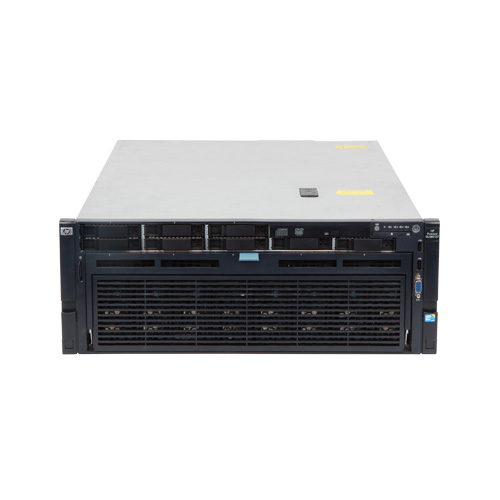

HPe ProLiant DL580 Gen7 (G7) Server – Specifications

Processor 4 Sockets

Intel® Xeon® processor E5-2600 v3 product family
Intel® Xeon® processor E7-4800 product family
Intel® Xeon® processor E7-8800 product family
Intel® Xeon® processor X7500 product family
Intel® Xeon® processor L7500 product family
Intel® Xeon® processor E7500 product family

Operating Systems And Virtualization Software Support For Proliant Servers

• Microsoft Windows Server
• Red Hat Enterprise Linux (RHEL)
• SUSE Linux Enterprise Server (SLES)
• Oracle Solaris
• VMware
• Citrix XenServer

Chipset

Industry Standard Intel® 7500 Chipset

Memory

Memory Maximum

• PC3-10600R DIMMs (DDR3)

Standard (2P Models)

• 16GB (4 x 4GB)

Standard (4P Model – E7540)

• 32GB (8 x 4GB)

Standard (4P Models – X7560, X7550)

• 64GB (16 x 4GB)

Standard (4P Models – X7560, X7550)

• 64GB (16 x 4GB)

Standard (2P Models – E7-4830, E7-4807)

• 64 (8 x 8GB)

Standard (4P Models – E7-4870, E7-4850)

• 128GB (16 x 8GB)

Maximum

• 2TB (64 x 32GB)

Expansion Slots

Expansion Slots (Main IO Board standard)

Expansion Slots with IO Expander

Expansion Slots Expansion Slots with I/O Expander (standard PCIe option)

Internal Storage Devices

Diskette Drive

• None

Optional Optical Drive

• HP Slim SATA DVD ROM Optical Drive

Hard Drives

• None ship standard

Hard Disk Drive Backplane

• Internal SAS backplane supports up to eight SFF hard disk drives

Maximum Internal Storage

Interfaces

Serial

• 1

Video

• 1 front; 1 rear

Network RJ-45

• 4

iLO 3 Remote Management

• 1

Keyboard

• 1

Pointing Device (Mouse)

• 1

SD Slot

• 1

USB 2.0 Ports

• 6 total: 2 front; 2 rear; 2 internal

Power Supply

• HP 1200W Common Slot Platinum Hot Plug Power Supply Kit
• HP 1200W Common Slot Silver Hot Plug Power Supply Kit

System Fans

• Four Hot Plug redundant fans standard (3+1)

Graphics

• Integrated ATI ES1000 with 64MB embedded video SDRAM

Chassis

• 4U Rack

Hp Insight Management

• HP Service Pack for ProLiant
• HP Insight Foundation
• HP Integrated LightsOut (iLO)

Intelligent Manageability

• HP Systems Insight Manager
• SmartStart
• Redundant ROM
• Remote Flash ROM
• Management Agents
• Integrated Management Log (IML)
• Automatic Server Recovery-2 (ASR-2)
• ROM-Based Setup Utility (RBSU)
• Dynamic Sector Repairing (with Smart Array Controllers)
• Drive Parameter Tracking (with Smart Array Controllers)
• Pre-Failure Warranty (covers processors, SAS hard drives and memory)
• Redundant/adaptive load balancing NIC Support
• Hot Spare Boot

Security

• Power-on password
• Keyboard password
• External USB port enable/disable
• Network Server Mode
• Serial interface control
• Administrator’s password
• Removable optical drive
