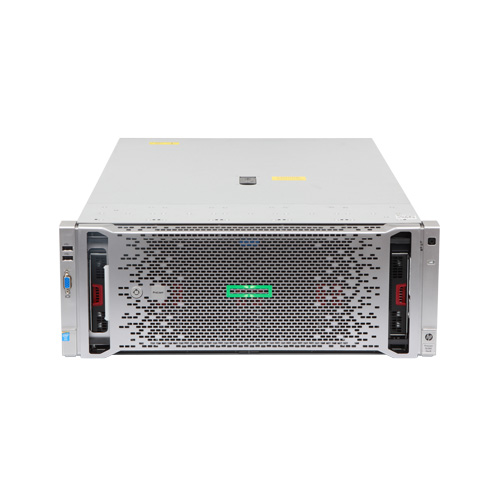

HPe ProLiant DL580 GEN8
The HPe ProLiant DL580 Gen8 server supports two, three, or four Intel Xeon processors with 96 slots to support memory intensive workloads including virtualization, database, and big data applications like Hadoop. With 9 PCIe 3.0 slots it can support significant I/O bandwidth to fully exploit the 12Gb/s SAS storage performance.
HPe ProLiant DL580 Gen8 (G8) Server – Specifications
Processor – 4 Sockets
Intel® Xeon® processor E7-4800 v2 and E7-8800 v2 product families
Core Options:
- 6, 8, 10, 12, 15
Operating Systems And Virtualization Software Support For ProLiant Servers
- Microsoft Windows Server
- Red Hat Enterprise Linux (RHEL)
- SUSE Linux Enterprise Server (SLES)
- VMware
Chipset
- Intel C602J Chipset
Memory
Memory Maximum
- 6TB (96 x 64GB)
Memory Slots
- 96 DIMM slots
Memory type
- DDR3 Registered (RDIMM) and Load Reduced (LRDIMM)
Expansion Slots
NOTE: Up to 9 slots supported; all full-length/full-height. Standard: 4 PCI-E 3.0 x8, 5 PCI-E 3.0 x16.
| Processor | Expansion Slot # | Technology | Width | Connector Width | Form Factor |
|---|---|---|---|---|---|
| 4 | 1 | PCIe 3.0 | x16 | x16 | FH/FL |
| 4 | 2 | PCIe 3.0 | x16 | x16 | FH/FL |
| 3 | 3 | PCIe 3.0 | x16 | x16 | FH/FL |
| 3 | 4 | PCIe 3.0 | x8 | x16 | FH/FL |
| 3 | 5 | PCIe 3.0 | x8 | x16 | FH/FL |
| 2 | 6 | PCIe 3.0 | x16 | x16 | FH/FL |
| 2 | 7 | PCIe 3.0 | x8 | x16 | FH/FL |
| 2 | 8 | PCIe 3.0 | x8 | x16 | FH/FL |
| 1 | 9 | PCIe 3.0 | x16 | x16 | FH/FL |
Storage Controller
HPe Smart Array P830i/2G FBWC Controller
Internal Storage Devices
Hard Disk Drive Backplane
- Internal SAS lower and upper backplanes support up to ten SFF hard disk drives or solid state drives
Diskette Drive
- None
Optional Optical Drive
- None
Hard Drives
- None ship standard
Maximum Internal Storage
| Hot Plug SFF SAS | 12 TB | 10 x 1.2 TB |
| Hot Plug SFF SAS SSD | 16 TB | 10 x 1.6 TB |
| Hot Plug SFF SATA SSD | 8 TB | 10 x 800 GB |
Interfaces
Serial
- 1
Video
- 1 front; 1 rear
Network RJ-45
- 4
iLO 4 Remote Management
- 1
micro-SD Slot
- 1
USB 2.0 Ports
- 8 total: 2 front; 4 rear; 2 internal
Common Slot Power Supply
- HPe 1500W Common Slot Platinum Plus Hot Plug Power Supply
- HPe 1200W Common Slot Platinum Plus Hot Plug Power Supply
System Fans
- 4 Hot Plug Fans (eight rotors with N+1 redundancy)
Graphics
- Integrated Matrox G200 video standard
- HPe iLO 4 On System Management Memory
Chassis
4U Rack
On System Management
HPe iLO Management:
- HPe iLO
- HPe Agentless Management
- HPe Active Health System
- HPe Intelligent Provisioning
- HPe iLO Mobile App
HPe Insight Management
HPe Service Pack for ProLiant
Related Products
HPe ProLiant BL490C G3EN 7
HPe ProLiant BL490C G3EN 7The HP ProLiant BL490c G7 Virtualization Blade raises the bar for memory capacity and I/O bandwidth in a half-height blade. Coupling
up to 2 Intel® Xeon® processors with 18 DIMM slots and support for up to 24 NICs, the BL490c G7 gives enterprise data center
managers the ideal server platform for hosting virtual machines.
HPe ProLiant DL360 GEN7
HPe ProLiant DL360 GEN7The HPe ProLiant DL360 Gen7 server is a 1U system that can hold up to two processors, eight drive bays, and up to 384GB of memory. Built around Intel’s Xeon 5600 series, this small rack server is capable of handling a variety of tasks from general purpose to high-performance computing.
HPe ProLiant DL360 GEN 10
HPe ProLiant DL360 GEN 10The HPe ProLiant DL360 Gen10 is a highly flexible, performance-driven two-socket server that features Intel’s new Scalable family of processors in a densely-packed 1U form factor. This an excellent foundational server for a data center deployment supporting database, virtualization, and high-performance computing applications.
HPe ProLiant DL380 GEN 10
HPe ProLiant DL380 GEN 10The HPe ProLiant DL380 Gen10 server features two processors and is part of HPe’s new 10th generation line of servers offering greater performance along with hardware-based security features to deliver the world’s most secure industry-standard servers. The DL380 platform is the data center standard for multi-workload compute applications.
HPe ProLiant BL460 C GEN 9
HPe ProLiant BL460 C GEN 9The HPe ProLiant BL460c Gen9 is a half-height blade server designed for HPe’s BladeSystem c3000 or c7000 enclosure. The BL460c features two-socket performance and is designed to optimize your core IT applications with a flexible, and easily-sized workload solution.

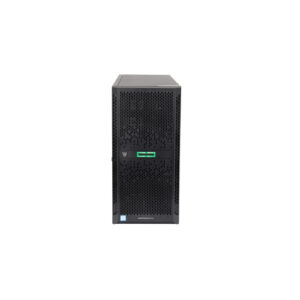

HPe ProLiant ML350 GEN8
