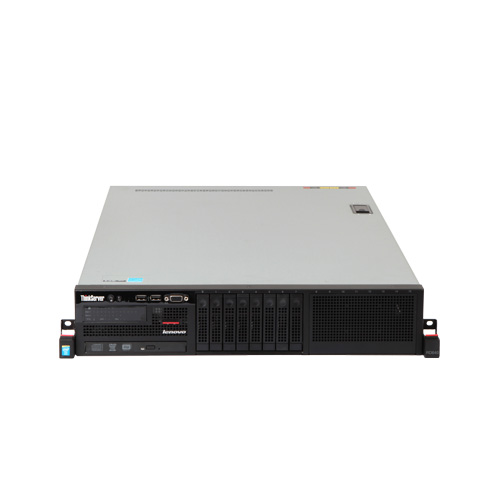

Lenovo Think Server RD640
The Lenovo ThinkServer RD640 server is a dual-socket 2U workhorse server that’s designed for virtualized workloads and is a perfect fit for the database, analytics, and other common business workloads. Energy costs are kept to a minimum with Lenovo’s Smart Grid management technology and support for low-voltage memory modules.
Lenovo ThinkServer RD640 Server – Specifications
- Intel® Xeon® E5-2600 series processors
Chipset
- Intel C602J Chipset
Memory
20 DIMM sockets
- 12 sockets for CPU 1
- 8 sockets for CPU 2
Memory type
- 1600MHz, LV RDIMM, DDR3, 4-channel per processor, 240-pin
RAID Support
| RAID adapter | RAID support | Cache | Transfer rates | Optional upgrades |
|---|---|---|---|---|
| RAID 500 (LSI® 9240-8i) | 0, 1, 10 | 6Gb/s | optional upgrade key, add RAID 5, 50 support | |
| RAID 700 (LSI 9260-8i) | 0, 1, 10, 5, 50, 6, 60 | 512MB | 6Gb/s | optional intelligent Battery Backup Unit (iBBU08) |
| RAID 710 (LSI 9270CV-8i) | 0, 1, 10, 5, 50, 6, 60 | 1GB | 6Gb/s |
|
Disk Bays
Front
- 8 x 3.5-inch hot-swap SATA/SAS
- 16 x 2.5-inch hot-swap SATA/SAS
Network Interface
- 2 Gb Ethernet ports
- 1 Gb Ethernet port (dedicate/share management)
Ports
Front
- 2 x USB 2.0
- 1 x VGA
Rear
- 4 x USB 2.0
- 1 x serial (9-pin)
- 2 x Ethernet (RJ-45)
- 1 x RJ-45 (dedicate/share management)
- 1 x VGA
Expansion Slots
- Slot 1: half-length, full-height, PCIe 3.0 x16 (x8 elec)
- Slot 2: half-length, full-height, PCIe 3.0 x8
- Slot 3: half-length, full-height, PCIe 3.0 x8
- Slot 4: Low Profile, PCIe 3.0 x8
- Slot 5: half-length, full-height, PCIe 3.0 x16 (x8 elec)
- Slot 6: half-length, full-height, PCIe 3.0 x8
Note: Slots 5 and 6 are available on dual processors models
Maximum Internal Storage
- 8 x 4TB 3.5″ SATA/SAS Hot-Swap Drives
- 16 x 1TB 2.5″ SATA/SAS Hot-Swap Drives
Mechanical
- 2U rack
- 19″W x 28.9″D x 3.45″H (with rack handles)
- 26.5 kg (58.42 lb) when fully configured
Power Supply
- Up to 2 x 800 watt standard, 80 PLUS® Gold qualified
Systems Management
- Onboard Aspeed AST2300 graphics/management processor, IPMI 2.0-compliant baseboard management controller (BMC); optional ThinkServer Management Module Premium for iKVM functions
- Control Panel LEDs shows the status of power, ID, network, system
- Lenovo SmartGrid Manager
- ThinkServer EasyStartup/EasyManage/EasyUpdate
Onboard network
Standard:
- (Three onboard Gigabit Ethernet ports (RJ-45):Two Gigabit Ethernet ports by Intel i350; one Gigabit Ethernet port by Intel 82574L, dedicate/share management
Optional
- Intel Ethernet Server Adapter I350-T2
- Intel Ethernet Server Adapter I350-T4
- Intel 10Gbps Ethernet X520-SR2 Server adapter
- Intel 10Gbps Ethernet X520-DA2 Server adapter
- Intel 10Gbps Ethernet Fiber Module for X520-DA2 adapter
- Intel 10Gbps Ethernet X540-T2 Server adapter
