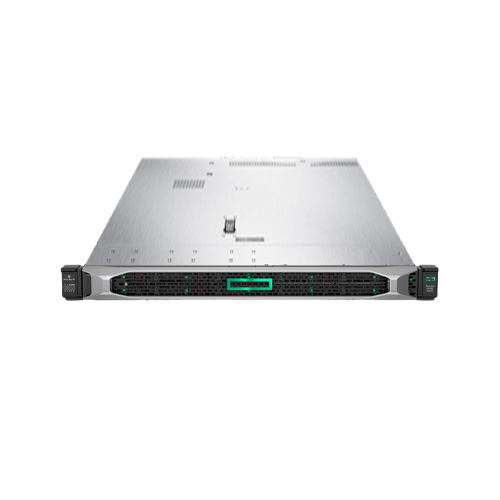

HPe ProLiant DL360 GEN 10
The HPe ProLiant DL360 Gen10 is a highly flexible, performance-driven two-socket server that features Intel’s new Scalable family of processors in a densely-packed 1U form factor. This an excellent foundational server for a data center deployment supporting database, virtualization, and high-performance computing applications.
HPe ProLiant DL360 Gen10 (G10) Server – Specifications
Processor – 2 Sockets
Intel® Xeon® Platinum Processors
Intel® Xeon® Gold Processors
Intel® Xeon® Silver Processors
Intel® Xeon® Bronze Processors
Operating Systems And Virtualization Software Support
- Windows Server 2012 R2 (Most Recent Version)
- Windows Server 2016 (Most Recent Version)
- VMware ESXi 6.0 U3
- VMware ESXi 6.5 and U1 upon release
- Red Hat Enterprise Linux (RHEL) 6.9 and 7.3
- SUSE Linux Enterprise Server (SLES) 11 SP4 and 12 SP2
- ClearOS
- CentOS
Chipset
Intel C621 Chipset
On System Management Chipset
HPe iLO 5 ASIC
Memory
Type
- Registered (RDIMM), Load Reduced (LRDIMM)
DIMM Slots Available
- 12 DIMM slots per processor, 6 channels per processor, 2 DIMMs per channel
Maximum Capacity (LRDIMM)
- 3.0 TB: 24 x 128 GB LRDIMM @ 2666 MT/s
Maximum Capacity (RDIMM)
- 768 GB: 24 x 32 GB RDIMM @ 2666 MT/s
NVDIMM
- 192 GB: 12 x 16 GB NVDIMM @ 2666 MT/s
Expansion Slots
Primary GPU Riser
| Expansion Slots # | Technology | Bus Width | Connector Width | Processor | Slot Form Factor |
|---|---|---|---|---|---|
| 1 | PCIe 3.0 | x16 | x16 | CPU 1 | Full-height, 3/4 length (up to 9.5in) |
| 2 | PCIe 3.0 | x8 | x8 | CPU 1 | Low Profile |
Primary GPU Riser
| Expansion Slots # | Technology | Bus Width | Connector Width | Processor | Slot Form Factor |
|---|---|---|---|---|---|
| 1 | PCIe 3.0 | x16 | x16 | CPU 1 | Full-height, 3/4 length (up to 9.5in) |
| 2 | PCIe 3.0 | x16 | x16 | CPU 1 | Low Profile |
Primary NVMe Riser
| Expansion Slots # | Technology | Bus Width | Connector Width | Processor | Slot Form Factor |
|---|---|---|---|---|---|
| 1 | PCIe 3.0 | x16 | x16 | CPU 1 | Full-height, 3/4 length (up to 9.5in) |
| 2 | PCIe 3.0 | x8 | x8 | CPU 1 | Low Profile |
Secondary Riser
| Expansion Slots # | Technology | Bus Width | Connector Width | Processor | Slot Form Factor |
|---|---|---|---|---|---|
| 3 | PCIe 3.0 | x16 | x16 | CPU 2 | Low Profile or Full-height; 3/4 length (up to 9.5″) |
Storage Controllers
Software RAID
- HPe Smart Array S100i SR Gen10 SW RAID
Essential RAID Controller
- HPe Smart Array E208i-a SR Gen10 Controller
- HPe Smart Array E208i-a SR G10 LH Controller
- HPe Smart Array E208i-p SR Gen10 Controller
- HPe Smart Array E208e-p SR Gen10 Controller
Performance RAID Controller
- HPe Smart Array P408i-a SR Gen10 Controller
- HPe Smart Array P408i-a SR G10 LH Controller
- HPe Smart Array P408i-p SR Gen10 Controller
- HPe Smart Array P408e-p SR Gen10 Controller
- HPe Smart Array P816i-a SR Gen10 Controller
- HPe Smart Array P816i-a SR G10 LH Controller
Internal Storage Devices
Optical Drive
- Available on 8 SFF and 4 LFF CTO Servers as an option (DVD-ROM or DVD-RW)
Hard Drives
- None ship standard
Maximum Storage
| STORAGE | CAPACITY | CONFIGURATION |
|---|---|---|
| Hot Plug SFF SAS | 22 TB | 8+2+1 x 2 TB (with optional UMB + rear drive option) |
| Hot Plug SFF SATA HDD | 22 TB | 8+2+1 x 2 TB (with optional UMB + rear drive option) |
| Hot Plug SFF SATA SSD | 42.24 TB | 8+2+1 x 3.84TB (with optional UMB + rear drive option) |
| Hot Plug SFF NVMe PCIe SSD | 23.84 TB | 10 x 2 TB NVMe + 1 SFF x 3.84 TB (with rear drive option) |
| Hot Plug LFF SAS | 40 TB | 4 x 10 TB |
| Hot Plug LFF SATA | 40 TB | 4 x 10 TB |
| Hot Plug LFF SATA SSD | 6.4 TB | 4 x 1.6 TB |
Power
- HPe 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
- HPe 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
- HPe 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
System Fans
Standard – Standard single rotor hot plug fans
- 1 CPU – Includes 5 standard fans
- 2 CPUs – Includes 7 standard fans
Interfaces
Serial:
- 1 port – Optional
Video:
- 1 Front – Display port (optional 8 SFF and 4 LFF only)
- 1 Rear – VGA port (standard on all chassis types)
Network Ports:
- 4x 1GbE embedded NIC (standard on all chassis types)
- 1 FlexibleLOM slot available on all chassis types (supporting various NICs adapters)
iLO Remote Mgmt Port:
- 1 Gb Dedicated
MicroSD Slot:
- 1 MicroSD slot
USB 3.0:
- Up to 5 total: 1 front, 2 rear, 2 internal (standard on all chassis types) +1 optional USB 2.0 front (on 8 SFF and 4 LFF only)
SID (Systems Insight Display):
- Optional for all chassis types
Graphics
Integrated video standard
HPe iLO 5 on system management memory
Chassis
1U Rack
Chassis Types:
- 8 SFF with options supporting: +2 SFF or 2 NVMe or 2 Dual uFF (4x M.2 cartridges)
- 10 SFF NVMe Premium
- 4 LFF
Embedded Management
- HPe Integrated Lights-Out (HPe iLO)
- UEFI
- Intelligent Provisioning
- iLO RESTful API
Server Utilities
- Active Health System
- Active Health System Viewer
- Smart Update
- iLO Amplifier Pack
- HPe iLO Mobile Application
- RESTful Interface Tool
- Scripting Tools
- HPe OneView Standard
- HPe Systems Insight Manager (HPe SIM)
Security
- UEFI Secure Boot and Secure Start support
- Immutable Silicon Root of Trust
- FIPS 140-2 validation (iLO 5 certification in progress)
- Common Criteria certification (iLO 5 certification in progress)
- Configurable for PCI DSS compliance
- Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
- Support for Commercial National Security Algorithms (CNSA)
- iLO Security Modes including a New iLO Advanced Premium Security License
- Granular control over iLO interfaces
- Smart card (PIV/CAC) and Kerberos based 2-factor Authentication
- Tamper-free updates – components digitally signed and verified
- Secure Recovery – recover critical firmware to known good state on detection of compromised firmware
- Ability to rollback firmware
- Secure erase of NAND
- TPM (Trusted Platform Module) 1.2 option
- TPM (Trusted Platform Module) 2.0 option
- Bezel Locking Kit option
- Chassis Intrusion detection option
Related Products

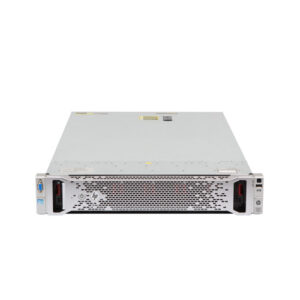

HPe ProLiant DL560 GEN 8
