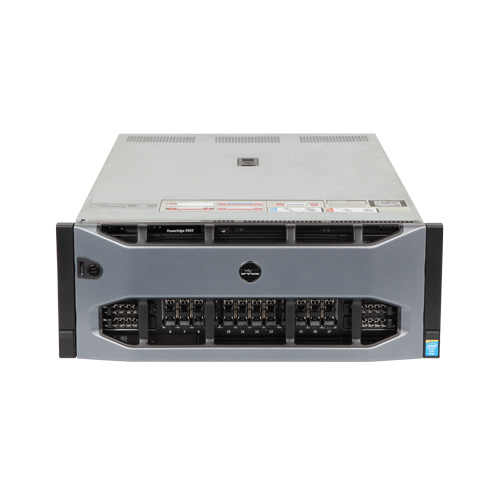

Dell Power Edge R920
The Dell PowerEdge R920 features four sockets and is designed for massive scale-out. It supports generous memory and storage in a 4u chassis and is an excellent choice for in-memory database applications, high-performance computing, and Big Data.
Dell PowerEdge R920 Rack Server – Specifications
Processor
- Intel® Xeon® processor E7-4800 v2 and E7-8800 v2 product families (up to 4)
- Intel Xeon processor E7-2800 v2 product family (up to 2)
Operating System
- Microsoft® Windows Server® 2012 R2 (includes Hyper-V®)
- Microsoft Windows Server 2012 (includes Hyper-V)
- Novell® SUSE® Linux Enterprise Server
- Red Hat® Enterprise Linux®
- VMware vSphere® ESXi™
Chipset
Intel C602J
Memory
Up to 6TB
Up to 1600MT/s DDR3L, RDIMM, LR-DIMM
96 DIMM slots
Storage
- 24 x 1.2TB HDD
- 16 x 1.2TB HDD + 8 x 1.6TB PowerEdge Express Flash NVMe PCIe SSDs
Supported drives
Hot-plug hard drive options:
- 2.5” SATA/SAS SSD, SAS HDD (15K, 10K), nearline SAS HDD (7.2K)
- 2.5” PCIe SSDs: Dell PowerEdge NVMe Express Flash PCIe SSD
Drive Bays
- Up to 24 2.5” hot-plug 12Gb/6Gb SAS HDD or SAS/SATA SSD
- Up to 8 front-accessible Express Flash NVMe PCIe SSD (PCIe 3.0)
RAID Controllers:
- Internal controllers:
- PERC H730P
- External controllers:
- PERC H8106Gbps SAS HBA
Slots
I/O slots:
- Up to 10 PCIe slots; 8 PCIe 3.0, + 1 RAID slot, + 1 NDC slot + 2 optional PCIe slots
Communications
Embedded NICs:
- Broadcom® 5720 QP 1Gb Network Daughter Card
- Broadcom 57800 2x10Gb DA/SFP+ + 2x1Gb BT Network Daughter Card
- Broadcom 57800 2x10Gb BT + 2x1Gb BT Network Daughter Card
- Broadcom 57840S Quad Port 10Gb SFP+ Direct Attach Rack Network Daughter Card
- Intel Ethernet I350 QP 1Gb Network Daughter Card
- Intel X520 DP 10Gb DA/SFP+, + I350 DP 1Gb Ethernet, Network Daughter Card
- Intel Ethernet X540 10Gb BT DP + I350 1Gb BT DP Network Daughter Card
Power
- Hot-plug redundant PSUs: 750W AC, 1100W AC and DC
Availability
- Hot-plug hard drives
- Hot-plug redundant power
- Hot-plug redundant fans
- ECC memory
- Internal dual SD module
Graphics Card
Matrox® G200 with 8MB memory
Chassis
Rack
H: 6.8” (172.6mm)
W: 18.99” (482.4mm)
D: 31.59” (802.3mm) with psu and bezel
D: 29.65” (753mm) without bezel
Management
Remote Management
- iDRAC7 with Lifecycle Controller
- iDRAC7 Express (default)
- iDRAC7 Enterprise (upgrade option)
- 8GB or 16GB vFlash media (upgrade options)
Systems Management
- IPMI 2.0 compliant
- Dell OpenManage Essentials
- Dell OpenManage Mobile
- Dell OpenManage Power Center
- Dell OpenManage Integrations:
- Dell OpenManage Integration Suite for Microsoft System Center
- Dell OpenManage Integration for VMware® vCenter
- Dell OpenManage Connections:
- HP Operations Manager
- IBM Tivoli® Netcool®
- CA Network and Systems Management
- Dell OpenManage Plug-in for Oracle Database Manager
Rack Support
ReadyRails II, the sliding rail system for the R920, provides tool-less support for 4-post racks with square or unthreaded round mounting holes, including all generations of Dell racks. The sliding rail system also supports tooled mounting in 4-post threaded racks.
Related Products
Dell Power Edge R420
Dell Power Edge R420The Dell PowerEdge R420 rack server is a scalable, flexible, 2-socket foundation for data center applications and remote offices. The high density 1U design supports both consolidated and virtualized environments and comes with an array of features to enhance reliability, availability, and serviceability.
Dell Power Edge R740XD
Dell Power Edge R740XD
Dell Power Edge R530
Dell Power Edge R530The Dell PowerEdge R530 server features two CPUs and offers reliability, expandability, and performance for running a wide range of common business workloads. The new Gen13 version also offers 40% performance increase compared to the Gen12 R520.

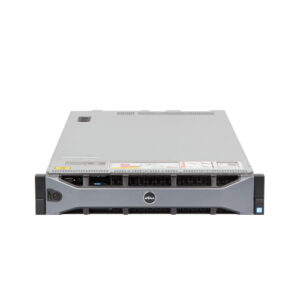

Dell Power Edge R830
