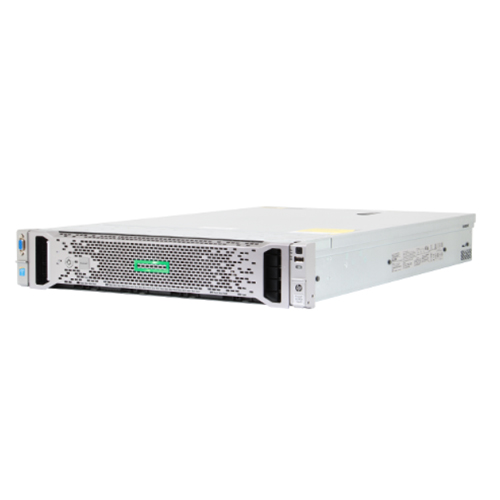

HPe ProLiant DL380p GEN8
The HPe ProLiant DL380p Gen8 server delivers enterprise-class capabilities to the SMB market with a multitude of new management tools such as HPe’s iLO 4.0 server management. Enhanced configuration flexibility and HPe’s customer-inspired design allows for easy upgrades and serviceability.
HPe ProLiant DL380p Gen8 (G8) Server – Specifications
Processor – 2 Sockets
Intel® Xeon® processor E5-2600 and E5-2600 v2 product families
Operating Systems And Virtualization Software Support For ProLiant Servers
- Microsoft Windows Server
- Canonical Ubuntu
- Red Hat Enterprise Linux (RHEL)
- SUSE Linux Enterprise Server (SLES)
- Oracle Linux
- VMware
- Citrix XenServer
Chipset
Intel® C600 Series Chipset
On System Management Chipset
HP iLO (Firmware: HP iLO 4)
Memory
Type
- DDR3 Load Reduced (LRDIMM), Registered (RDIMM) or Unbuffered (UDIMM)
DIMM Slots Available
- 24 (12 DIMM slots per processor /4 channels per processor/3 DIMMs per channel)
Maximum Capacity (LRDIMM)
- 768GB (24 x 32GB LRDIMM @1066MHz)
Maximum Capacity (RDIMM)
- 384GB (24x 16GB RDIMM @1333MHz)
Maximum Capacity (UDIMM)
- 128GB (16 x 8GB UDIMM @1600MHz)
Maximum Capacity (HDIMM)
- 768GB (24 x 32GB HDIMM @1333MHz)
Network Controller
Entry Models
- HP Ethernet 1Gb 4-port 331FLR Adapter
Base Models
- HP Ethernet 1Gb 4-port 331FLR Adapter
25SFF Models
- HP FlexFabric 10Gb 2-port 533FLR-T Adapter
Performance Models
- HP Ethernet 10Gb 2-port 530FLR-SFP+ Adapter
- HP Ethernet 1Gb 4-port 331FLR Adapter
- HP FlexFabric 10Gb 2-port 533FLR-T Adapter
- Energy Star Models
- HP Ethernet 1Gb 4-port 331FLR Adapter
Expansion Slots
Primary Riser (Standard)
| Expansion Slot # | Technology | Bus Width | Connector Width | Bus Number | Form Factor |
|---|---|---|---|---|---|
| 1 | PCIe 3.0 | X16 | X16 | 7 | Full Length, Full Height |
| 2 | PCIe 3.0 | X8 | X8 | 10 | Half Length, Full Height |
| 3 | PCIe 2.0 | X4 | X8 | 13 | Half Length, Full Height |
PCIe Riser (Optional 3-slot)
| Expansion Slot # | Technology | Bus Width | Connector Width | Bus Number | Form Factor |
|---|---|---|---|---|---|
| 4 | PCIe 3.0 | X16 | X16 | 16 | Full Length, Full Height |
| 5 | PCIe 3.0 | X8 | X8 | 20 | Half Length, Full Height |
| 6 | PCIe 3.0 | X8 | X8 | 23 | Half Length, Full Height |
PCIe Riser (Optional 2-slot)
| Expansion Slot # | Technology | Bus Width | Connector Width | Bus Number | Form Factor |
|---|---|---|---|---|---|
| 4 | PCIe 3.0 | X16 | X16 | 16 | Full Length, Full Height |
| 5 | PCIe 3.0 | X16 | X16 | 16 | Half Length, Full Height |
Storage Controller
Entry Models
- HP Smart Array P420i/ZM (RAID 0/1/1+0)
Base Models
- HP Smart Array P420i/1GB with FBWC (RAID 0/1/1+0/5/5+0/6/6+0)
25SFF Models
- HP Smart Array P420i/2GB with FBWC (RAID 0/1/1+0/5/5+0/6/6+0)
Performance Models
- HP Smart Array P420i/2GB with FBWC (RAID 0/1/1+0/5/5+0/6/6+0)
Energy Star Models
- HP Smart Array P420i/1GB with FBWC (RAID 0/1/1+0/5/5+0/6/6+0)
Internal Storage Devices
Diskette Drive
- None
Optical Drive
- Ships standard in Performance Models
- Optional: DVD-ROM, DVD-RW
Hard Drives
- None ship standard
Drive Bays
- Standard: 8SFF drive bays total with Optical Bay, 8 LFF drive bays total with Optical Bay, 12LFF drive bays total, or 25SFF drive bays total
- Optional: +8SFF drive bay (total of 16SFF drive bays)
Maximum Internal Storage
| Hot Plug SFF SAS | 50.0TB | 25 x 2TB (with optional SFF drive cage) |
| Hot Plug SFF SATA | 50.0TB | 25 x 2TB (with optional SFF drive cage) |
| Hot Plug LFF SAS | 96.0TB | 12 x 8TB (with optional LFF drive cage) |
| Hot Plug LFF SATA | 96.0TB | 12 x 8TB (with optional LFF drive cage) |
| Hot Plug SFF SAS SSD | 48.0TB | 25 x 1.92TB (with optional SFF drive cage) |
| Hot Plug SFF SATA SSD | 96TB | 25 x 3.84TB (with optional LFF drive cage) |
| Hot Plug LFF SAS SSD | 19.2TB | 12 x 1.6TB (with optional LFF drive cage) |
| Hot Plug LFF SATA SSD | 46.08TB | 12 x 3.84TB (with optional LFF drive cage) |
Interfaces
Serial
- 1
Video
- 2 (1 front, 1 back) not active simultaneously
FlexibleLOM Network Ports
- Some models come standard with 4 x 1Gb ports while others come with 2 x 10Gb or 2 x 10Gb base-T ports
HP iLO Remote Management Network Port
- 1 Gb Dedicated
SD slot
- 1 Internal Secure
USB 2.0 Ports
- Up to 7 total: up to 2 front, 4 back, 1 internal
System Fans
- 2P Models have (6) (N+1 redundancy standard)
- 1P Models have (4) (N+1 redundancy standard)
Graphics
- Integrated Matrox G200 video standard
- HP iLO 4 On System Management Memory
Chassis
2U Rack
8 SFF & 25SFF Drive Bay Version: 3.44 (8.74 cm) Height x 17.54″ (44.55 cm) Width x 27.5″ (69.85 cm) Length
8 LFF & 12LFF Drive Bay Version: 3.44 (8.74 cm) Height x 17.54″ (44.55 cm) Width x 29.5″ (74.94cm) Length
On System Management
HP iLO Management Engine:
- HP iLO
- HP Agentless Management
- HP Active Health System
- HP Intelligent Provisioning
- HP iLO Mobile App
HP Insight Management
HP Service Pack for ProLiant (SPP)
Security
- Power-on password
- Serial interface control
- Administrator’s password
