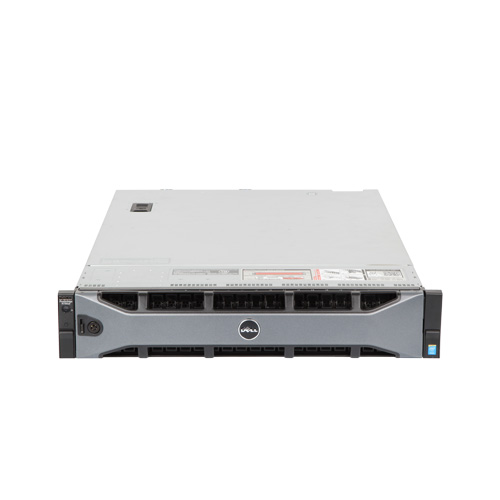

Dell Power Edge R730XD

Dell Power Edge R730XD

The Dell PowerEdge R730xd features an optimal blend of performance and flexibility in a two socket, 2U form factor. Featuring impressive storage and memory, this server can run mission critical tasks with ease.

Share this product

Dell PowerEdge R730xd Server – Specifications

Form Factor

2-U

Processor
  • Intel® Xeon® E5 2600 v3 processors

or

  • Intel® Xeon® E5 2600 v4 processors

Both processors must be the same generation and model

Operating System
  • Microsoft® Windows Server® 2008 R2
  • Microsoft Windows Server 2012
  • Microsoft Windows Server 2012 R2
  • Novell® SUSE® Linux Enterprise Server
  • Red Hat® Enterprise Linux
  • VMware® ESX®
  • Chipset
  • Intel C610 series chipset
Memory
  • DDR4 DIMMs at up to 2133MT/s (v3 processors)

or

  • DDR4 DIMMs at up to 2400MT/s (v4 processors)
  • Maximum RAM: Up to 1.5TB (24 DIMM slots): 4GB/8GB/16GB/32/64GB DDR4
Embedded Hypervisor (Optional)
  • Supported optional hypervisors:
  • Microsoft® Windows Server® 2008, with Hyper-V
  • VMware® vSphere® ESXiTM
  • Citrix® XenServer®
Storage

SAS, SATA, nearline SAS, SSD, PCIe SSD:

  • Up to 81TB with 18 x 1.8″ 960GB SATA SSD = 8 x 3.5″ SATA/nearline SAS HDD
  • Up to 46.8TB with 24 x 2.5″ 1.8TB hot-plug SAS HDD + 2 x 2.5″ 1.8TB hot-plug SAS HDD
  • Up to 131.6TB with 12 x 3.5 8TB nearline SAS HDD = 4 x 3.5 8TB nearline SAS + 2 x 2.5 1.8TB SAS HDD or SSD
Drive Bays

Internal hard drive bay and hot-plug backplane:

  • Up to 16 x 3.5″ SAS, SATA, nearline SAS, SSD + 2 x 2.5″ drives
  • Up to 18 x 1.8″ SAS, SATA, nearline SAS, SSD drives + 8 x 3.5″ SAS, SATA, nearline SAS, SSD drives, + 2 x 2.5″ HDD
  • Up to 26 x 2.5″ SAS, SATA, nearline SAS, SSD, PCIe SSD drives
Slots
  • Slot 1: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
  • Slot 2: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
  • Slot 3: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
  • Slot 4: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
  • Slot 5: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
  • Slot 6: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
  • Dedicated RAID card
Raid Controllers

Internal:

  • PERC H330
  • PERC H730
  • PERC H730P

External:

  • PERC H830
Network Controller

4 x 1Gb, 2 x 10Gb

Communications
  • Broadcom® 5719 quad-port 1Gb NIC
  • Broadcom 5720 dual-port 1Gb NIC
  • Broadcom 57810 dual-port 10Gb DA/SFP+ CNA
  • Broadcom 57810 dual-port 10Gb Base-T network adapter
  • Intel® Ethernet I350 dual-port 1Gb server adapter
  • Intel Ethernet I350 quad-port 1Gb server adapter
  • Intel Ethernet X540 dual-port 10GBASE-T server adapter
  • Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapter
  • Mellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapter
  • Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA
  • Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA
  • Emulex LPe16000B, single-port 16Gb Fibre Channel HBA
  • Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA
  • Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA
  • QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA
  • QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA
  • Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height
  • Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height
Power
  • 1100W AC, 86 mm 13G (Platinum+)
  • 1100W DC, 86 mm 12G (Gold)
  • 750W AC, 86 mm 12G (Platinum)
  • 750W AC, 86 mm 12G (Diamond)
  • 495W AC, 86 mm 12G (Platinum)
Availability
  • ECC memory
  • Hot-plug hard drives
  • Hot-plug redundant cooling
  • Hot-plug redundant power
  • iDRAC8
  • Internal Dual SD Module
  • Single Device Data Correction (SDDC)
  • Spare Rank
  • Support for high availability clustering and virtualization
  • Proactive systems management alerts
  • iDRAC8 with Lifecycle Controller
Chassis

H: 8.73 cm (3.44 in.) x W: 44.40 cm (17.49 in.) x D: 68.40 cm (26.92 in.)

Management
  • Dell OpenManage portfolio of systems management solutions, including:
  • OpenManage Essentials console
  • iDRAC8 with Lifecycle Controller
