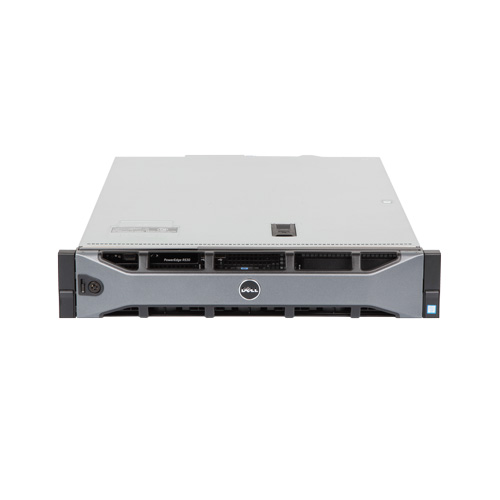

Dell PowerEdge R530 Server – Specifications

Processor – 2 Sockets

Intel® Xeon® processor E5-2600 v3 and E5-2600 v4 product families

Operating System (Dell Recommends Windows 10 Pro)

• Microsoft® Windows Server® 2008 R2
• Microsoft® Windows Server® 2012
• Microsoft® Windows Server® 2012 R2
• Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V®
• Novell® SUSE® Linux Enterprise Server
• Red Hat® Enterprise Linux
• VMware® ESX®

Chipset

Intel C610 series chipset

Memory

DDR4 DIMMs at up to 2400MT/s
12 DIMM slots: 4GB, 6GB, 16GB, 32GB

Hypervisor Support

• Citrix® XenServer®
• Microsoft® Windows Server® 2008, with Hyper-V®
• VMware vSphere ESXi

Storage

• SAS
• SATA
• Nearline SAS
• SSD

Drive Bays

Up to 8 x 3.5” SAS, SATA, nearline SAS, SSD drives

Slots

Support for up to 5 x PCIe slots, half-length low-profile:

• 3 x PCIe 3.0
• 2 x PCIe 2.0

Raid Controllers

Internal:

• PERC S130
• PERC H330
• PERC H730
• PERC H730P

External:

• PERC H830

Network Controller

4 x 1 GbE LOMs

Communications

Optional add-in NICs, HBAs

Power

• 495W AC, 750W AC, 1100W AC hot-plug PSU
• 1100W -48V DC hot-plug PSU
• 450W AC cabled PSU

Availability

• ECC memory
• Single Device Data Correction (SDDC)
• Spare Rank
• Hot-plug hard drives
• Hot-plug redundant power
• iDRAC8 with Lifecycle Controller
• Support for HA clustering
• Virtualization-ready
• Internal Dual SD Module (Failsafe Hypervisor)
• TPM 1.2

Graphics Card

Video Type :

• Integrated Matrox G200 with iDRAC8

Video Memory:

• 16 MB shared with iDRAC8 application memory

Chassis

2U Rack
H: 8.68cm
W: 48.24cm
D: 66.8cm

Management

Systems management:

• IPMI 2.0 compliant
• Dell OpenManage Essentials
• Dell OpenManage Mobile
• Dell OpenManage Power Center

Remote management:

• iDRAC8 with Lifecycle Controller
• iDRAC8 Express (default)
• iDRAC8 Enterprise (upgrade)
• 8GB vFlash media (upgrade)
• 16GB vFlash media (upgrade)
• iDRAC Quick Sync
• Dell OpenManage Integrations:
  • Dell OpenManage Integration Suite for Microsoft® System Center
  • Dell OpenManage Integration for VMware® vCenter™
  • HP Operations Manager, IBM Tivoli® Netcool®, and CA Network and Systems Management (NSM)
• Dell OpenManage Connections:
  • HP Operations Manager
  • IBM Tivoli® Netcool®
  • CA Network and Systems Management
  • Dell OpenManage Plug-in for Oracle® Database Manager
