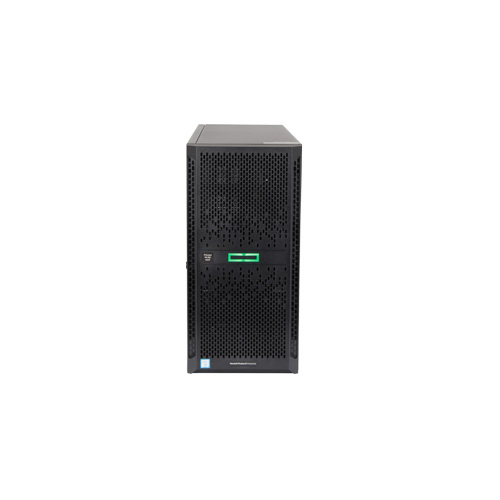

HPe ProLiant ML350 GEN 9
In today’s business world, HPe’s ProLiant ML350 Gen9 server is a top choice for deployment in data centers, professional offices or SMB’s. This 5U platform balances flexibility with cost, and creates a world-class server solution providing comprehensive management tools, superior performance, excellent reliability, and expandability.
HPe ProLiant ML350 Gen9 Tower Server – Specifications
Processor – 2 Sockets
Intel® Xeon® processor E5-2600v3 and E5-2600v4 product families
Operating Systems And Virtualization Software Support For ProLiant Servers
- Microsoft Windows Server
- Canonical Ubuntu
- Red Hat Enterprise Linux (RHEL)
- SUSE Linux Enterprise Server (SLES)
- VMware
- Citrix XenServer
- ClearOS
Chipset
Intel® C610 Series Chipset
On System Management Chipset
HPe iLO (Firmware HPe iLO4 2.0 or later) 4GB NAND
Memory
Type
- DDR4 Registered (RDIMM) or Load Reduced (LRDIMM)
DIMM Slots Available
- 24 (12 DIMM slots per processor, 4 channels per processor, 3 DIMMs per channel)
Maximum Capacity
- 1.5TB (24 x 64GB LRDIMM) with E5-2600v3 processors
- 3TB (24 x 128GB LRDIMM) with E5-2600v4 processors
Maximum Capacity (RDIMM)
- 768GB (24 x 32GB RDIMM)
Network Controller
HPe 1Gb Ethernet 4-port 331i Adapter
Expansion Slots
Expansion Slot # | Technology | Bus Width | Connector Width | Bus Number | Form Factor |
---|---|---|---|---|---|
9 | PCIe 3.0 | X4 | X8 | Full-height, full-length slot | |
8 | PCIe 3.0 | X16 | X16 | Full-height, full-length slot | |
7 | PCIe 3.0 | X4 | X8 | Full-height, full-length slot | |
6 | PCIe 3.0 | X16 | X16 | Full-height, full-length slot | |
5 | PCIe 2.0 | X4 | X8 | Full-height, half-length slot | |
4 | PCIe 3.0 | X4 | X8 | 0 | Full-height, full-length slot |
3 | PCIe 3.0 | X16 | X16 | 0 | Full-height, full-length slot |
2 | PCIe 3.0 | X4 | X8 | 0 | Full-height, half-length slot |
1 | PCIe 3.0 | X8 | X16 | 0 | Full-height, full-length slot |
Storage Controller
Entry Models
- HPe Dynamic Smart Array B140i Embedded SATA controller
Base Models
- HPe Flexible Smart Array P440ar/2GB
Performance Models
- HPe Flexible Smart Array P440ar/2GB
Internal Storage Devices
Optical Drive
- Optional SATA 9.5mm DVD-ROM Optical Drive
- Optional SATA 9.5mm DVD RW Optical Drive
Hard Drive Bays
- 8 Hot plug SFF SAS/SATA HDD bays; upgradable to 48
- 8 Hot plug LFF SAS/SATA HDD Bays; upgradable to 24
Hard Drives
- None ship standard
Maximum Internal Storage
Hot Plug LFF SAS | 240TB | 24 x 10TB |
Hot Plug LFF SATA | 240TB | 24 x 10TB |
Hot Plug LFF SAS SSD | 38.4TB | 24 x 1.6TB |
Hot Plug LFF SATA SSD | 92.16TB | 24 x 3.84TB |
Hot Plug SFF SAS | 96TB | 48 x 2TB |
Hot Plug SFF SATA | 96TB | 48 x 2TB |
Hot Plug SFF SAS SSD | 184.32TB | 48 x 3.84TB |
Hot Plug SFF SATA SSD | 184.32TB | 48 x 3.84TB |
Hot Plug SFF NVMe PCIe SSD | 7.2TB | 6 x 1.2TB |
Power Supply
- HPe 500W Flex Slot Platinum Hot Plug Power Supply
- HPe 800W Flex Slot Platinum Hot Plug Power Supply
- HPe 1400W Flex Slot Platinum Plus Hot Plug Power Supply
System Fans
- 1P model: 3 non-redundant fans, 6 redundant fans
- 2P model: 4 non-redundant fans, 8 redundant fans
Interfaces
Serial
- 1
Video
- 1 (rear)
Network RJ-45 (Ethernet)
- 4
HP iLO Remote Management Network Port
- 1 Gb Dedicated
SD slot
- 1 (internal)
USB 2.0 Ports
- 5 (2 front, 2 rear, 1 internal)
USB 3.0
- 3 (2 rear, 1 internal)
Graphics
Integrated Matrox G200 video standard
Chassis
Tower or Rack (5U)
Embedded Management
- HPe Integrated Lights-Out (HPe iLO)
- UEFI
- RESTful API
- Intelligent Provisioning
- Embedded Remote Support
Server Utilities
- Smart Update
- HPe Systems Insight Manager (HPe SIM)
- Scripting Tool Kit and Windows PowerShell
- RESTful Interface Tool
- HPe iLO Mobile Application
- HPe Insight Online
Security
- Power-on password
- Setup password
- Serial interface control
- Power switch security
- Administrator’s password
- UEFI
- TPM 1.2
- TPM 2.0
- Security Front Bezel
- Chassis mechanical support of padlock and Kensington Security lock (located at system rear)
